Structural, mechanical and electrical properties of alloys in ternary Ag-Bi-Zn system

Duško M. Minić^a,*, Milena M. Premović^a, Dragana T. Živković^b, Dragan M. Manasijević^b, Mirjana Z. Dimić^c, Zvonko R. Petrović^d, Smiljana M. Marković^a

^aUniversity of Priština, Faculty of Technical Sciences, Kneza Miloša 7, 38220 Kosovska Mitrovica, Serbia

^bUniversity of Belgrade, Technical Faculty, VJ 12, 19210 Bor, Serbia

^cMilitary Technical Institute, Ratka Resanovića 1, 11000 Belgrad, Serbia

^dUniversity of Kragujevac, Faculty of Mechanical and Civil Engineering, Dositejeva 19, 36000 Kraljevo, Serbia

*Corresponding author: dminic65@open.telekom.rs

1. INTRODUCTIONTOP

Recent investigations of high temperature lead-free solder systems in the frame of COST MP0602 project (2007), indicated different silver-based systems as possible new more environmentally friendly substitue materials to be applied in electronics. Among mentioned group of systems the Ag-Bi-Zn system presents one of the promising candidates (Ipser, 2007; Abtew and Selvaduray, 2000; Terzieff et al., 2007; Zoro et al., 2005; Hassam et al., 2001).

The first investigations of Ag-Bi-Zn alloys, from thermodynamic and phase diagram point of view, were done in 1988 by Kubaschevski (1988). Miyazawa and Ariga (2001) presented their results on characterization of Ag-Bi-Zn alloys, while most complete data on that system was given by Ohtani et al. (2004). There are also references concerning constitutive binary subsystems (Gandova and Vassilev, 2013; Premović et al., 2013; Jendrzejczyk-Handzlik et al., 2007).

In order to give a contribution to knowledge and better understanding of the Ag-Bi-Zn system, the results of investigation of structural, mechanical and electrical properties of these potential lead-free, ecological aloys are presented in this paper. Knowledge of these properties is very important for further work with these alloys. Many researchers are examining properties for the different alloys (Soteloa et al., 2014; Vargas-Arista et al., 2014; D’Errico et al., 2013).

2. EXPERIMENTALTOP

2.1. SamplesTOP

The investigated alloy samples were prepared from high purity (99.999%) silver, bismuth, and zinc powders produced by Alfa Aesar (Germany).

The samples of 4 g mass, prepared of mixed powders, were sealed in evacuated quartz tubes, melted in an induction furnace under argon atmosphere and subsequently cooled in air. The mass loss during the melting of the samples were about 1 mass%. The alloys prepared in described way were heated to temperature 50 °C higher than silver melting temperature and then cooled to 473 K by heating rate of 5 °C min⁻¹. Further, the alloys were annealed at mentioned temperature of 473 K for 300 hours, and then rapidly cooled dip into a mixture of ice and water in order to maintain the desired equilibrium. Weight losses during the annealing was less than 0.5 mass%.

2.2. TechniquesTOP

Scanning electron microscopy combined with energy dispersive spectrometry, light optical microscopy, x-ray diffraction (XRD), electrical conductivity and Brinell hardness measurements were applied in experimental investigation of examined alloys.

Scanning electron microscopy (SEM) was performed using a JEOL (JSM6460) microscope equipped with Oxford Instruments Energy Dispersive Spectrometer (EDS), while MAC company standards were applied for composition analysis (Brodarac et al., 2014).

Light optical microscopy (LOM) investigations were carried out using OLYMPUS GX41 inverted metallographic microscope.

Powder XRD data for phase identification of samples were recorded on a D2 PHASER Bruker, powder diffractometer equipped with a dynamic scintillation detector and ceramic X-ray Cu tube (KFL-Cu-2K) in a 2θ range from 5° to 75° with a step size of 0.02°. The patterns were analysed using the Topas 4.2 software, ICDD databases PDF2 2013.

The hardness of the samples was determined using a Brinell hardness tester INNOVATEST, model NEXUS 3001. Electrical conductivity measurements were carried out using the Foerster SIGMATEST 2.069 eddy current instrument. Microhardness of examined alloys was determined using apparatus HV-1000, SINOWON.

The samples used for light microscopy, electric conductivity measurements, and hardness tests were prepared by the classic metallographic procedure without etching. Also, ten samples of alloys investigated by optical microscopy were immersed in resin, while two samples, tested by SEM-EDS method, were not previously immersed.

3. RESULTSTOP

3.1. Structural analysisTOP

Structural analysis of chosen Ag-Bi-Zn alloys was investigated using following experimental techniques: LOM, XRD and SEM-EDS.

Optical microscopy is considered the nine samples of ternary alloys Ag-Bi-Zn system at 473 K. Obtain microstructure are presented in Fig. 1. Samples 1, 3, 6 and 9 are investigated using XRD analysis. Sample from number 10 to 15 are investigated using SEM-EDS analysis.

On characteristic presented microstructure of the considered nine samples from ternary Ag-Bi-Zn system at 473 K it is clearly visible two or three phases. On a larger number of investigated microstructure is basically a solid solution of bismuth (Bi) which composition is different depending on the composition of the considered sample. Besides solid solution of bismuth (Bi) which is basical in microstucture is presented solid solution of silver (Ag) or other compound from silver and zinc which are exist in this ternary system.

In order to confirmation the present phase at the investigated samples were done one more analysis which is XRD analysis. The results of XRD investigations for four examined Ag-Bi-Zn samples (1-Ag₄₇Bi₃₃Zn₂₀, 3-Ag₂₀Bi₂₀Zn₆₀, 6-Ag₈₀Bi₁₀Zn₁₀, 9-Ag₇Bi₃₃Zn₆₀) are presented in Table 1.

On four tested samples were also determine a lattice parameters. In Table 1 are presented experimentally obtained phases with obtained lattice parameters which are compared with literature data. Observing the experimentally obtained values and literature values it can be clearly see the reasonable agreement between them (Owen and Williams 1954; Davey, 1925; Henderson and Wilcox, 1964; Edmunds and Qurashi, 1951; Swanson and Tatge, 1997).

The results of SEM-EDS, including obtained SEM microphotographs and phases determined by EDS for investigated samples annealed at 473 K are presented in Fig. 2 and Table 1. This study was performed on six alloys, the compositions of the considered alloys are shown below each microstructure in Fig. 2 and in Table 1. On the microstructure are marked defined phases and the compositions of these phases are shown in Table 1.

The microstructure marked with 10-Ag₇₀Bi₁₀Zn₂₀ and 11-Ag₈₀Bi₁₄Zn₆ are present alloys with high silver content. On this alloys are confirmed two phases ((Ag)+(Bi)), by using SEM-EDS analysis. Also this region is confirmed with XRD method by sample 6-Ag₈₀Bi₁₀Zn₁₀. Other two-phases region ((Bi)+(AgZn)) is confirmed by SEM-EDS analysis with sample 14-Ag₁₀Bi₅₀Zn₄₀, and by XRD with sample 3-Ag₂₀Bi₂₀Zn₆₀. The last investigated region is three-phases ((Ag)+(Bi)+(β-AgZn)) which is investigated by using SEM-EDS (tested sample 13-Ag₆₀Bi₁₄Zn₂₆) and XRD (tested sample 1-Ag₄₇Bi₃₃Zn₂₀). Based on all experimental tests it can be clearly see that investigated ternary Ag-Bi-Zn system is consist from a larger number of two-phase and three-phase regions In the microstructure are the most presented two solid solution of silver and bismuth and several intermetallic compounds of silver and zinc.

3.2. Electrical conductivity measurements and calculationTOP

The results of electrical conductivity measurements for samples in three vertical sections from bismuth, silver and zinc corner (Bi-AgZn, Ag-BiZn and Zn-AgBi) are presented in Table 2.

Based on experimentally measured values, electrical conductivity of the samples in Ag-Bi-Zn system was calculated according to the regression models of polynomial type, defined by following canonical polynomials (Kolarević, 2004; Cornell, 1990; Lazić, 2004):

- Linear

- Quadratic

- Special cubic

- Full cubic

For calculation of multiple regression coefficients, evaluation of model adequacy and best model choice, software RA-TeS v.1.1 (Regression Analysis in Ternary System) was used. That program calculates Whitcomb Score and automatically suggests the best polynomial model.

For description of electrical conductivity dependence on composition, quadratic model was suggested and selected.

According to presented calculation results (the results of ANOVA analysis (Analysis of Variance) for selected model and the evaluation of selected regression analysis and confidence interval of regression coefficients), final equation of selected model can be given as:

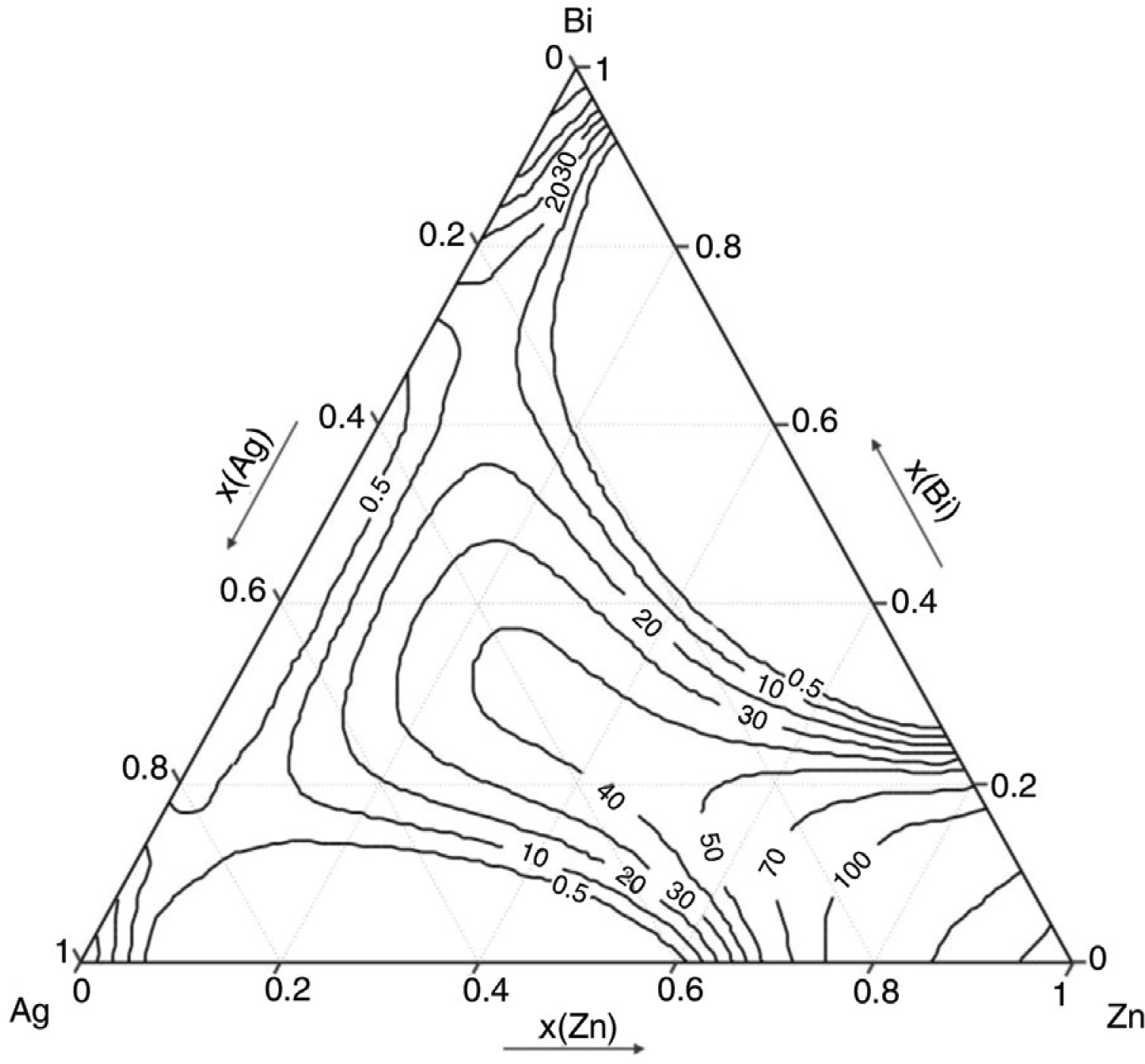

Two-dimensional conture diagram of electrical conductivity for the alloys in ternary Ag-Bi-Zn system, constructed according to calculation using Eq. (5), is given in Fig. 3.

Observing the obtained experimental values and calculated values it can see that the lowest values of electrical conductivity are in the central part of the ternary system, while in the corners of the ternary system values are in increasing.

3.3. Hardness and microhardness measurements and calculationTOP

The results of hardness measurements for samples chosen in four vertical sections Bi-AgZn, Ag-BiZn, Zn-AgBi and Bi-Ag₈₀Zn₂₀, done according to Brinell method, are presented in Table 3.

In order to determine the iso-lines for hardness of ternary Ag-Bi-Zn system, the calculation based on the experimental data was applied using same mathematical procedure as for the electroconductivity. That procedure was already applied sucesfully in our previous papers (Minić et al., 2011; Minić et al., 2012; Premović et al., 2014; Minić et al., 2014). Special cubic model was selected to describe the dependence of Brinell hardness test on mole fraction of components Ag, Bi, and Zn.

Final equation of the selected model can be written as:

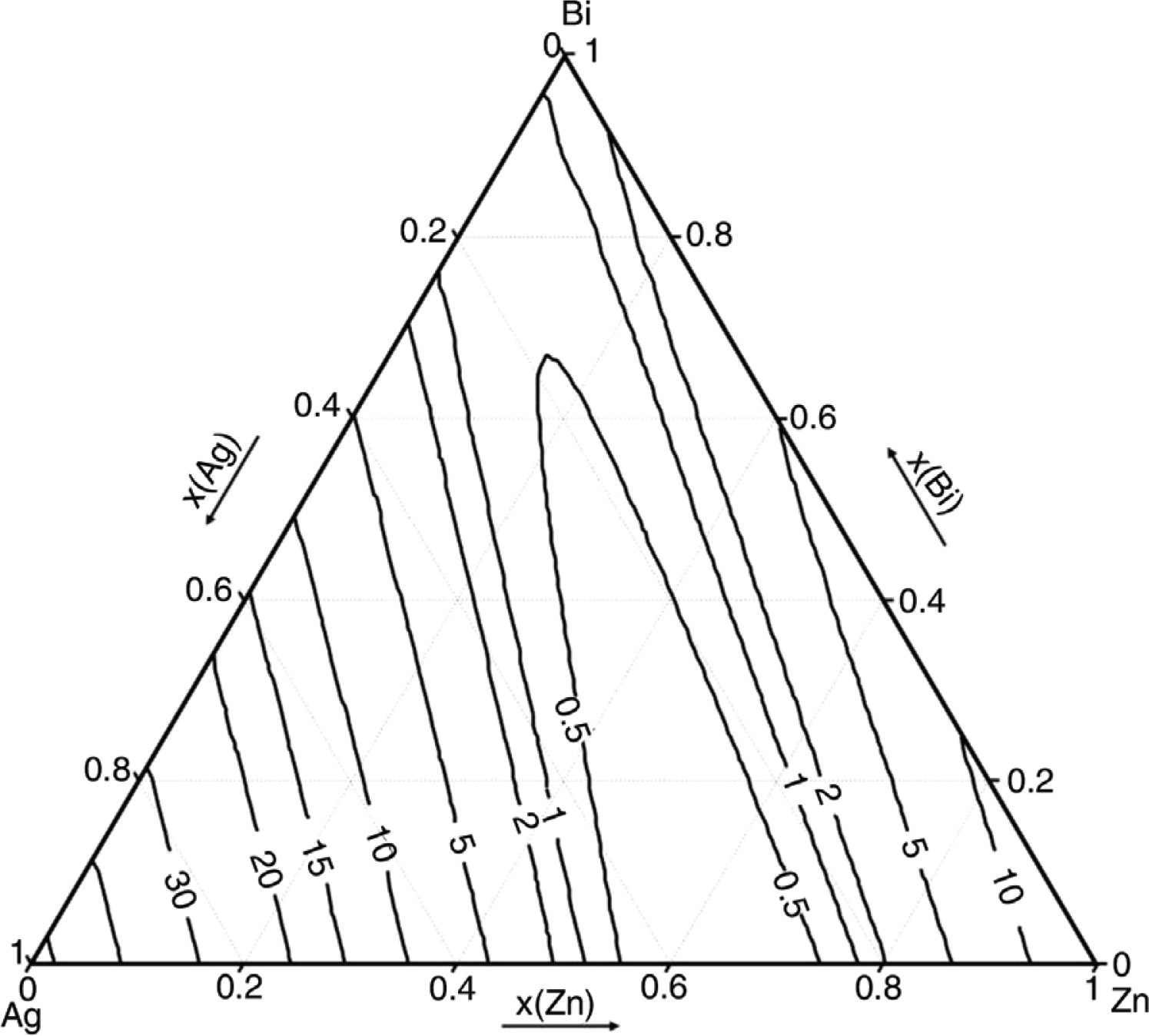

Two-dimensional conture diagram for Brinell hardness of alloys in ternary Ag-Bi-Zn system, calculated based on Eq. (6), is shown in Fig. 4.

In Fig. 4 is clearly visible that the obtained values for hardness by Brinell are increasing with increasing a mole fraction of zinc while in corner rich is silver value are decreasing.

Vickers microhardness was also investigated for four selected alloys in Ag-BiZn, Bi-AgZn and Zn-AgBi sections and presented in Table 4, together with adequate microphotographs. In Table 4 are presented value for Vickers microhardness with microphotographs.

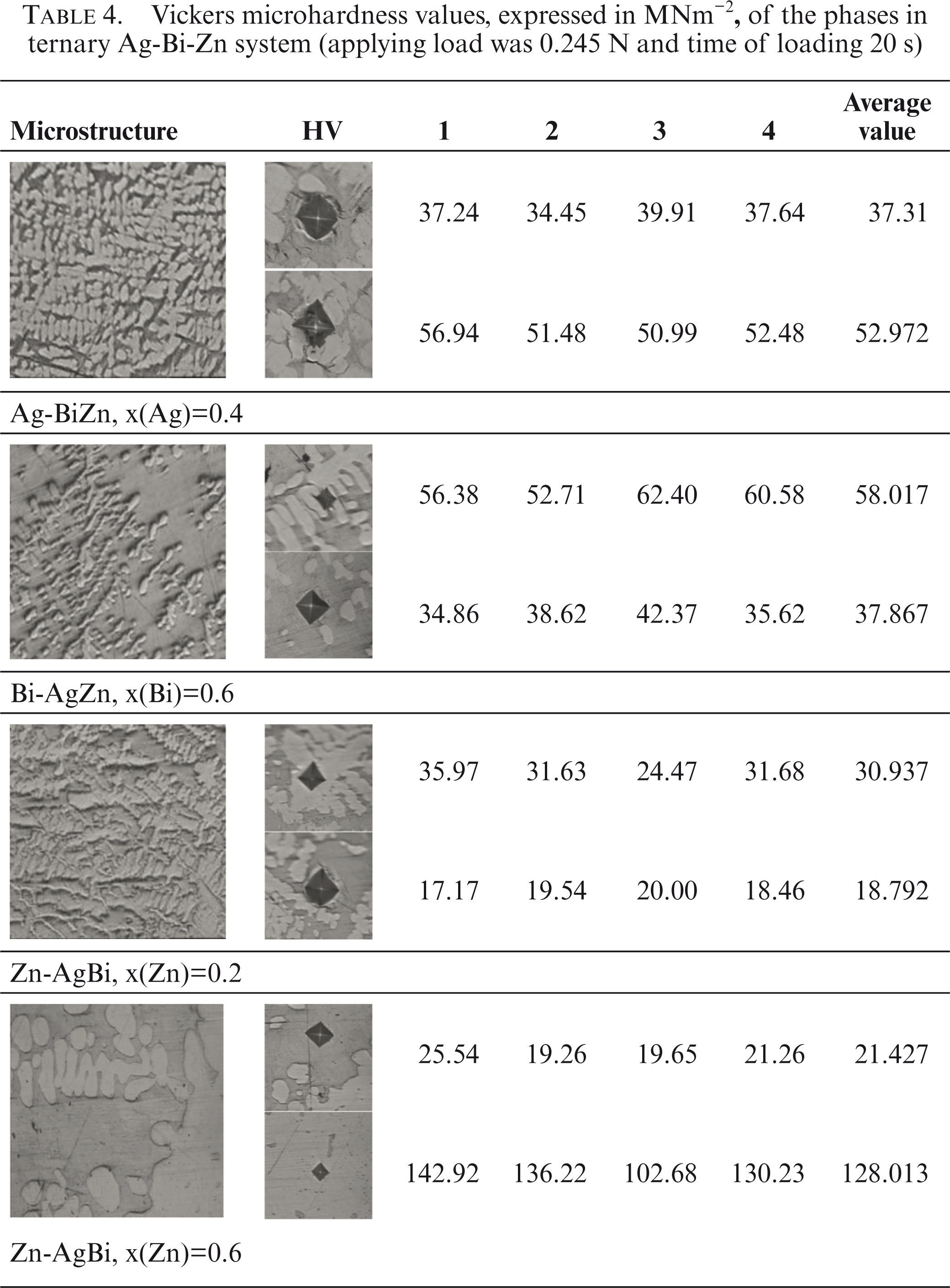

Table 4. Vickers microhardness values, expressed in MNm⁻², of the phases in ternary Ag-Bi-Zn system (applying load was 0.245 N and time of loading 20 s)

Microstructure	HV	1	2	3	4	Average value
		37.24	34.45	39.91	37.64	37.31
		56.94	51.48	50.99	52.48	52.972
Ag-BiZn, x(Ag)=0.4
		56.38	52.71	62.40	60.58	58.017
		34.86	38.62	42.37	35.62	37.867
Bi-AgZn, x(Bi)=0.6
		35.97	31.63	24.47	31.68	30.937
		17.17	19.54	20.00	18.46	18.792
Zn-AgBi, x(Zn)=0.2
		25.54	19.26	19.65	21.26	21.427
		142.92	136.22	102.68	130.23	128.013
Zn-AgBi, x(Zn)=0.6

On four investigated samples are obtained value hardness for two phases. In sample rich with zinc it can be seen phase with large hardness 128.013 MNm⁻². While other investigated phases have low value for hardness.

4. CONCLUSIONSTOP

ACKNOWLEDGMENTSTOP

The authors acknowledged financial support of the Ministry of Education, Science and Tehcnological Development of Republic of Serbia under the projects OI172037 and TR37020.
