Cell adhesion on Ti surface with controlled roughness

Laura Burgos-Asperilla^a, M. Cristina García-Alonso^a,b,*, M. Lorenza Escudero^a,b, Concepción Alonso^a

^aDepartment of Applied Physical Chemistry, Universidad Autónoma de Madrid, Ciudad Universitaria de Cantoblanco, 28049 Madrid, Spain

^bDepartment of Surface Engineering, Corrosion and Durability, National Centre for Metallurgical Research (CENIM-CSIC), Avda. Gregorio del Amo 8, 28040 Madrid, Spain

*Corresponding author: crisga@cenim.csic.es

1. INTRODUCTIONTOP

Titanium (Ti) and its alloys have been used in dental and orthopedic implants due to their mechanical properties, excellent corrosion behavior, and biocompatibility (Chen et al., 2009). The resistance of Ti-materials to corrosion is due to the spontaneous formation of a highly protective, passive TiO₂ film on the surface. The composition of the passive film (Yang et al., 2004) and the electrochemical processes that occur between the Ti-biomaterial and the cell culture medium are critical for the success of the implant (Echevarría and Arroyave, 2003; Burgos-Asperilla et al., 2010; Burgos-Asperilla et al., 2014).

The interaction between Ti surfaces and cells can be studied using techniques such as quartz crystal microbalance (QCM) and electrochemical impedance spectroscopy (EIS). Both techniques are powerful tools that can be used to examine the adhesion kinetics and mechanisms of cell proliferation. Specifically, QCM allows us to monitor the attachment and spread of cells on a particular surface quantitatively in real-time, with no need for destructive interventions. Several surface-adherent cell types have been examined (Marx Kenneth et al., 2003), and various parameters are measured to evaluate the viscoelastic properties of cells adhered to QCM crystal besides frequency shift, such as dissipation, resistance, inductance and transient decay time constants oscillation (Modin et al., 2006).

Electrochemical interactions have been studied between Ti and its alloys and various cell types, such as osteoblast-like U-2 OS cells (Huang, 2004), Saos-2 human osteoblasts (García-Alonso et al., 2009), and L929 fibroblasts (Hiromoto et al., 2002), by EIS. Valuable data on the interaction between Ti and Ti-6Al-4V alloy and osteoblast-like cells have been generated (Huang, 2004; Mustafa et al., 2002).

In this report, we have studied the electrochemical interaction between a smooth and reproducible Ti surface (QCM crystals coated by Ti) and cell culture medium with and without cells by EIS and QCM.

2. MATERIALS AND METHODSTOP

Commercial quartz crystal microbalance Ti-crystals, 25 mm in diameter and 300 nm in thickness, were used as the test specimen. The Ti-crystal samples were washed in distilled water and ethanol and sterilized under UV light for 15 minutes before the culture experiments.

Human osteosarcoma Saos-2 cells (ECACC, Salisbury, UK) were grown in Dulbecco’s modified Eagle’s medium (DMEM), supplemented with 10% (v/v) heat-inactivated fetal bovine serum (FBS), 500 UI ml⁻¹ penicillin, and 0.1 mg ml⁻¹ streptomycin. Cells were seeded on Ti-crystals samples at 1.5·10⁴ cells·cm⁻² for impedance measurements and 5·10⁴ cells·cm⁻² for QCM measurements, maintained in the growth medium for 7 days and 1 day, respectively.

An electrochemical cell with a 3-electrode setup was used (Alonso et al., 2008). The area of the working electrode (Ti-QCM samples) was 0.79 cm². The experiments were performed at 37±0.5 °C.

The EIS experiments were performed at the corrosion potential by applying a sinusoidal wave of 5 mV at 10⁵ Hz to 10⁻³ Hz spaced logarithmically (5 per decade).

The QCM probe was stabilized in air, obtaining a frequency value that was close to 5 MHz, after which DMEM at 37±0.5 °C was added. Finally, the cells were added over the DMEM electrolyte and the frequency was registered for 24 hours. Trypsin was added to the DMEM culture medium at the end of test in order to detach the adhered cells and to analyze if the frequency is recovered to the initial values.

For the atomic force microscope (AFM) studies, the images were acquired using silicon nitride cantilevers with a nominal probe curvature radius of 10 nm and a force constant of 40 N m⁻¹. For morphological imaging of the Ti-QCM samples, tapping-mode AFM microscopy was used.

For SEM analysis, the Saos-2 cells cultured on the Ti-QCM surface, were fixed in 2.5% glutaraldehyde in PBS for 24 hours at 4 °C and dehydrated at 4 °C in a series of graded ethanol. Finally, the cells were dried in increasing percentages of tetramethylsylane (TMS) in ethanol. After the dehydration, the Ti-cell surfaces were analyzed on a JEOL-6500F microscope.

3. RESULTS AND DISCUSSIONTOP

Figure 1 shows a detailed image by AFM (10 μm×10 μm) of a Ti-QCM substrate with surface roughness RMS (Root Mean Square) of approximately 37 nm—i.e., the Ti-QCM surfaces were smooth on a nanometer scale. Variations in roughness at the nanoscale level can influence the physical, chemical and biological responses of the implant material in environmental medium. Recent studies have shown that surface nanoroughness is important for the osseointegration response. Webster et al. (2000) and Mendonca et al. (2009) demonstrated that nanostructures govern the attachment of proteins to a surface, increasing the adherent cell response in cell cultures that are grown on nanostructure surfaces. Goreham et al. (2013) found that different cell types adhered in lower numbers when the nanotopography feature size increased to 68 nm. On the other hand, results reported by Khung et al. (2008) revealed that cells are even sensitive to nanoscale surface topography with feature sizes of <20 nm.

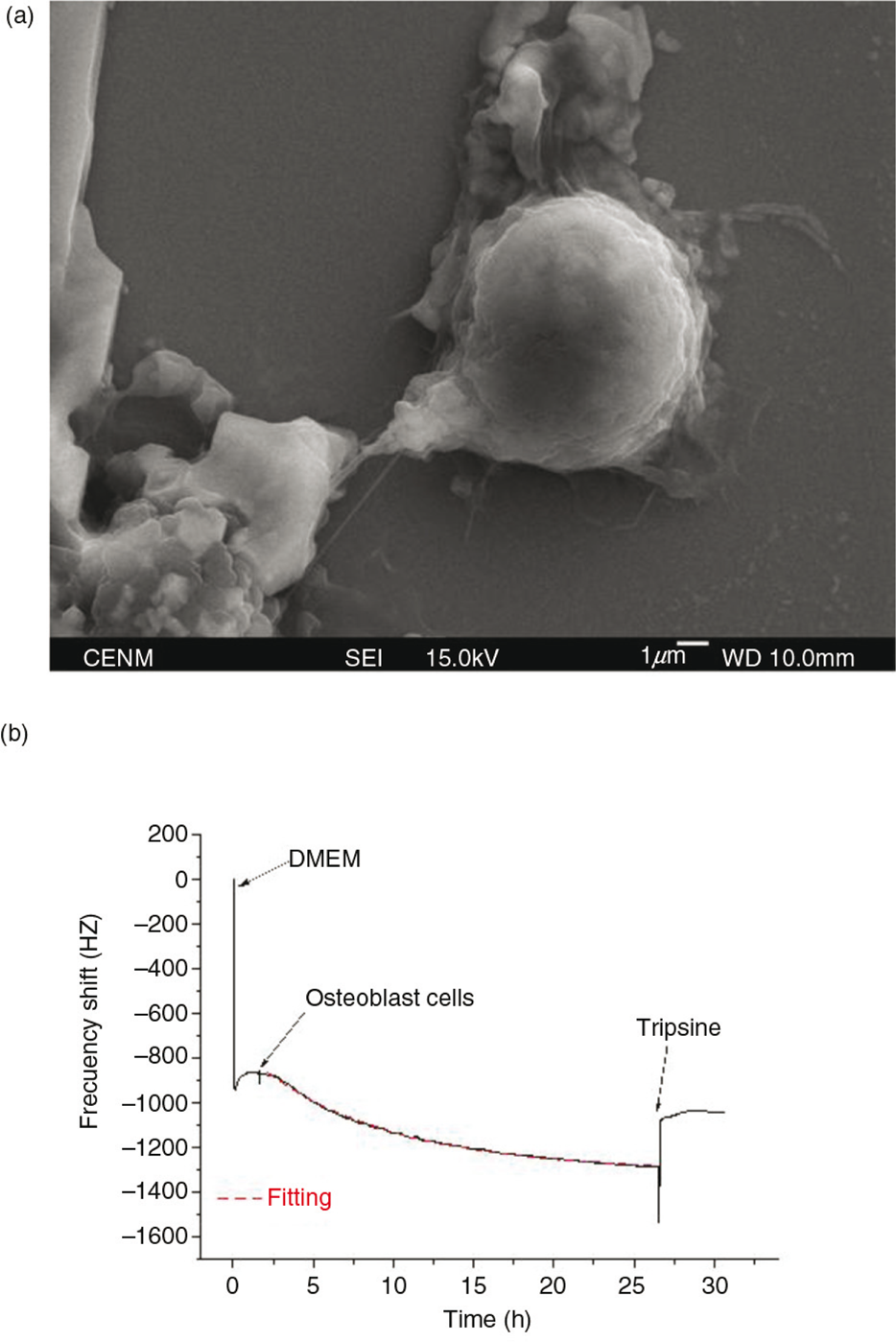

Two important properties of the biocompatibility of a material are cell adhesion and proliferation. The adhesion of cells in suspension to a substrate entails the following steps: 1) adsorption of proteins onto the surface; 2) contact of rounded cells with the surface (Fig. 2a); 3) attachment of the cells to the surface; and 4) the spread of cells on the surface (Malik et al., 1992). Figure 2b shows the evolution of the Δf values with time when the Saos-2 cells were added to DMEM, after 2 hours incubation time with DMEM in the absence of cells. The incubation prior to the addition of cells was performed to establish baseline frequency values, corresponding to Δf values that were equal to 0. Δf is the frequency change between the initial value (decrease of 863 Hz when DMEM is added to Ti crystal) and the final frequency (during 24 hours after having added osteoblasts to the DMEM, obtaining a final value of −421 Hz with respect to the initial frequency value with DMEM). Following the addition of cells, there was an initial step of decreasing in frequency as the cells settle toward, made contact with, and adhered to the titanium surface. These changes in frequency peaked 24 hours after the addition of Saos-2 cells. The Δf for DMEM was 868 Hz, which is higher than that of water (700 Hz) due to the presence of salts and proteins adsorbed to the Ti surface.

When the cells were injected into the Ti surface in growth medium, the Δf was 421 Hz after the 24 hours that was required to complete the attachment. Because DMEM and DMEM with Saos-2 cells had similar viscosities, frequency shifts were assigned to the response of cells that attached to the crystal. Owing to the cells behave viscoelastically, the Sauerbrey equation does not apply, but for comparative purposes, osteoblasts can be considered to behave like a viscous medium. The decrease in the frequency versus time can be used to study the adsorption kinetics. This process of decrease in frequency can be controlled by the transport (diffusion) or by the adsorption kinetics, which predicts dependencies with the time t^1/2 or exponential, respectively.

The dashed line in Fig. 2b is a kinetic fitting to the experimental data, which assumes that the rate of Saos-2 attachment is a first-order reaction (Eq. 1):

where Δf is the change in frequency at a time t, Δf_m (421 Hz) is the change in frequency between the initial and the final state and k is the first-order kinetics constant expressed in min⁻¹ (k=2∙10⁻³ min⁻¹). This behavior indicates that the process is not controlled by diffusion but the adsorption rate of osteoblasts on the Ti surface. Redepenning et al. (1993) observed similar behavior for a single layer of osteoblasts using the Kanazawa equation (Kanazawa and Gordon, 1985). If these results are compared with the adhesion kinetics for other cellular lines one concludes that, in this case, the kinetics is very slow, since during the testing time there was no observed increase in the frequency due to stiffening of the attached cells (Galli Marxer et al., 2003).

When trypsine is added to the culture medium, cells are detached from the surface but frequency is not completely recovered to the initial value. Instead of that, frequency change (Δf) decreases to 1046 Hz, i.e., 178 Hz lower than DMEM values. This decrease is due to the formation of extracellular matrix by cells on Ti crystals that remain adhered on Ti surface.

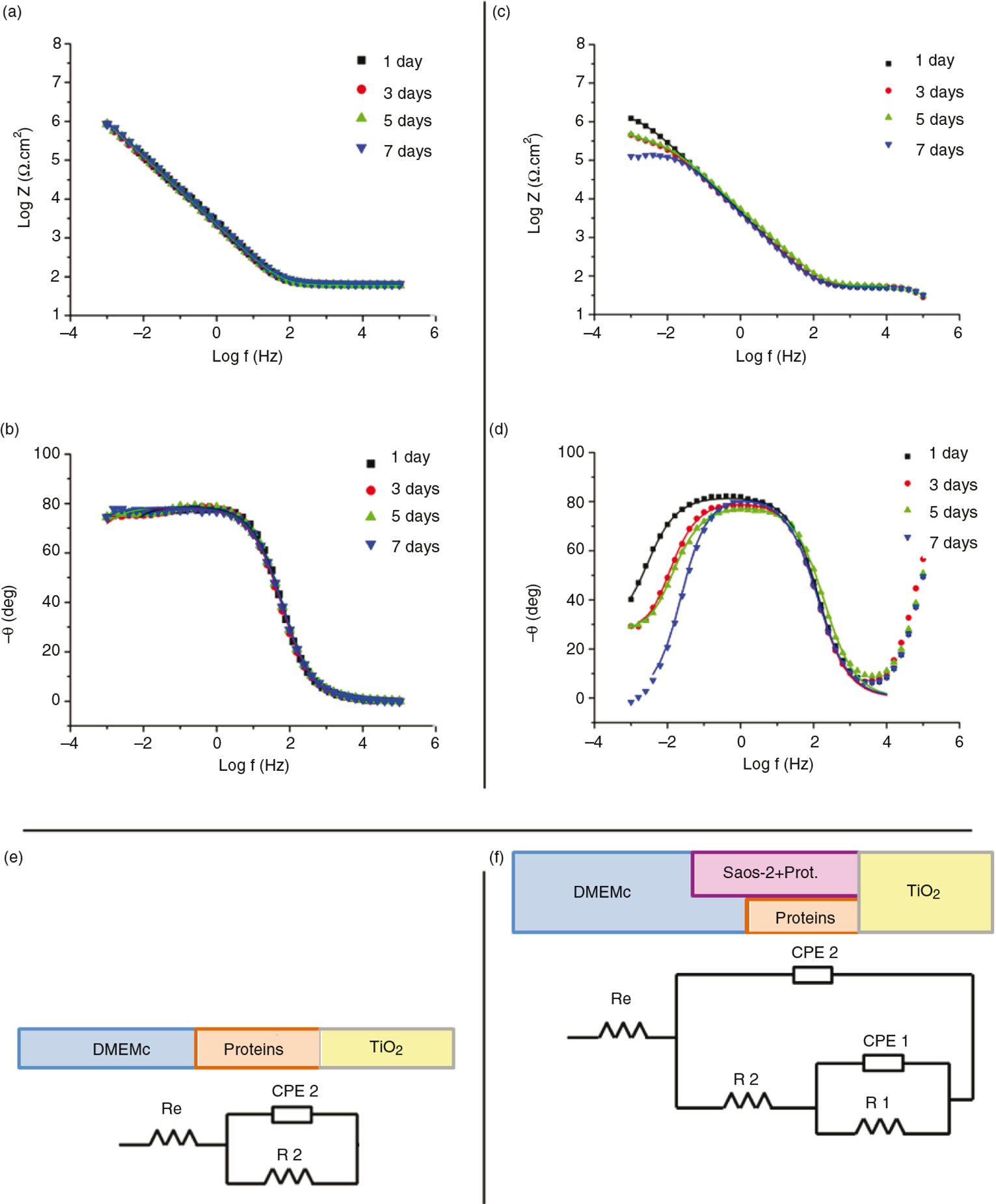

The adhesion and proliferation processes of osteoblasts on the Ti surface modify not only the composition of the DMEM culture medium but also the electrochemical properties of the metallic surface. The surface properties of the Ti-QCM surfaces are altered as a result of their electrochemical interaction with the cell culture medium and osteoblast cells. Figures 3a and b show the daily evolution of the impedance modulus and shift phase angle-versus-frequency (Bode diagrams) of the Ti surfaces in culture medium (DMEM/Ti-QCM) over 7 days. The impedance measurements showed a similar electrochemical response, independently on immersion time. These impedance diagrams were simulated, considering the equivalent circuit of the inset in Fig. 3e, where Re is the resistance of the electrolyte, and CPE and R2 are attributed to the Ti/DMEM interface, i.e., the constant phase element and resistance of the DMEM/Ti surface interphase, respectively. Table 1 shows the experimental and fitting results for the EIS experiments for each immersion day in DMEM over 7 days.

In the absence of Saos-2, CPE2 values increase slightly with time, probably due to the protein layer becomes more compact. Consequently, R2 decreases from the third day of testing. These results indicate that in the first steps of immersion rapid adsorption of proteins on the Ti surface occurs; but at longer immersion times, the presence of amino acids and proteins seems to increase the corrosion rate of metallic biomaterials as the decrease of R2 values over time show. These results agree with those published by Alberts et al. (1990) and Messer et al. (2001). Furthermore, the Ti can be selectively dissolved by the formation of complexes with proteins (Bruneel and Helsen, 1988; Clark and Williams, 1982).

The presence of Saos-2 cells in the culture medium modified the interface between the Ti surface and the proteins adsorbed from DMEM. Figure 3c and d show the Bode diagrams of the impedance modulus and phase angle versus frequency, respectively, of Ti-QCM surfaces cultured with Saos-2 osteoblasts for 1, 3, 5 and 7 days. The best fitting of the system was obtained considering two time constants (Fig. 3f). At high frequencies, the resistance of the electrolyte is higher than those values only in DMEM, without osteoblasts. At intermediate frequencies (10² Hz−10⁻² Hz), the slope of approximately −0.85 could be attributed to one capacitor (CPE2) in parallel with a resistance (R2) that is associated with the interface that is created by the culture medium and the biomolecule adsorption layer, containing cells and their extracellular matrix, formed on the Ti surface. At the lowest frequencies, the impedance values decrease until drawing a horizontal line the last day of testing in the impedance modulus of the Bode diagram that defines the resistance associated with the electrolyte and proteins/free of cell Ti surface interface (CPE1/R1).

According to the fit impedance results (Table 1), the pseudo capacitance (CPE2) of the biomolecule adsorption layer that integrates with Saos-2 cells increased with incubation time, suggesting that the cells rearranged the adsorbed proteins around them to adhere to titanium, possibly decreasing the amount of proteins that is adsorbed directly by titanium (Hiromoto et al., 2002). The approximate CPE2 values were 4×10⁻⁵ F∙cm⁻², the same magnitude as the capacitance of the adsorption of albumin, fibrinogen, and thrombin to platinum (1 to 10×10⁻⁵) F∙cm⁻² (Lacour et al., 1991). Similarly, the R2 values decreased as the adsorbed protein concentration fell. The Ti oxide resistance (R1) decreased and CPE1 values rose from the first day of incubation in Saos-2 cells, becoming evident over time. This result indicates that the compounds that are generated by Saos-2 cells, such as nitrous oxide and superoxide, can dissolve the oxide film by chemical reaction, accelerating the dissolution of Ti-QCM surfaces (Jones, 1998).

Summarizing, the electrochemical interaction of Ti-QCM surface with osteoblast cells and the DMEM culture medium resulted in a decrease in the oxide film resistance over time, indicating there is a tendency to be more active, i.e., greater tendency toward corrosion. This trend can be explained by considering the association of two processes occurring simultaneously in the cell culture medium. On the one hand, considering only DMEM, the cell culture medium contains inorganic ions such as phosphate ions and calcium ions, and proteins as albumin competing for adsorption onto the metal surface. It is known that the H₂PO₄⁻ and HPO₄²⁻ can form a strong complexation bond with Ti by an exchange reaction with the basic hydroxyl groups (Healy and Ducheyne, 1992). The addition of Ca stabilizes the formation of a calcium phosphate film that can be progressively formed in a period of between 1 and 2 weeks (Lima et al., 2001). Also do not forget that certain proteins can form complexes that facilitate the dissolution of Ti. On the other hand, considering the presence of osteoblast cells, we must note that in the adhesion process to the metal surface, osteoblasts replace the adsorbed proteins from the cell medium by specific adhesion proteins (Hiromoto et al., 2002), generating extracellular matrix which acts as a cushion suitable for anchoring on the Ti surface. This very active and dynamic metabolism not only generates proteins but also highly reactive waste products, such as superoxide, nitrous oxide, protons, etc., all actively act on the Ti decreasing the corrosion resistance of the metallic material.
