The intermetallic bonding between a ring carrier and aluminum piston alloy

Srećko Manasijević^a,*, Natalija Dolić^b, Mile Djurdjevic^c, Nataša Mišić^a, Novica Davitkov^d

^aLola Institute, Kneza Višeslava 70a, 11000 Belgrade, Serbia

^bUniversity of Zagreb, Faculty of Metallurgy, Aleja narodnih heroja 3, 44103 Sisak, Croatia

^cNemak Europe, Zeppelinstraße 24, 4030 Linz, Austria

^dUniversity of Belgrade, Technical Faculty in Bor, 12 Vojske Jugoslavije, 19201 Bor, Serbia

*Corresponding author: srecko.manasijevic@li.rs

1. INTRODUCTIONTOP

Pistons are made mostly of aluminum alloys (Al–Si–Cu–Ni–Mg), which represent a special group of industrial alloys that are used in the automotive industry due to a combination of good casting and mechanical properties (Manasijevic et al., 2009), high strength at elevated temperatures (e.g., up to 350 °C) and also resistance to sudden temperature changes (Belov et al., 2005; Manasijevic et al., 2009; Manasijevic, 2012; Manasijevic et al., 2013). Different types of piston alloys contain various amounts of major and minor alloying elements. The usual content of alloying elements is: 11–23 wt.% Si, 0.5–3 wt.% Ni, 0.5–5.5 wt.% Cu, 0.6–1.3 wt.% Mg, up to 1.0 wt.% Fe and up to 1 wt.% Mn (Belov et al., 2005; Manasijevic et al., 2009; Manasijevic, 2012; Manasijevic et al., 2013). The mechanical properties of aluminum piston alloys are defined by their micro and macro structures.

In order to keep up with all loads of aggressive environments, mechanical and thermal loads, the pistons materials must meet the following requirements (Manasijevic, 2012):

Depending on the engine type and operating conditions, there are different design solutions of pistons (Manasijevic, 2012): mono metallic aluminum pistons, pistons with ring carrier, pistons with cooling channel, pistons with cooling channel and ring carrier, pistons with controlled expansion, pistons with controlled spreading and ring carrier, pistons with iron coating, forged pistons, split pistons, pistons with the first groove reinforced, pistons with undulating mantle etc.

Mono metal aluminum pistons are made of aluminum alloy only, since the environment in which they are used does not require any additional elements. In the past, cast mono metal aluminum pistons were used for engine cylinder block of cast iron. Today, this type of piston is used in Otto engines with aluminum cylinder with relatively low-loaded automotive diesel engines (effective pressure up to 6.5 bar) with indirect injection (Manasijevic, 2012). Although the thermal load of the piston and the load of piston notches are higher in diesel engines, the shortcomings can be compensated for by using hypereutectic aluminum alloy with good wear resistance in pistons. Another positive feature of this alloy is small thermal expansion (Manasijevic, 2012).

In order to meet the requirements for lower fuel consumption, mean effective pressure of diesel engines for commercial vehicles is growing. These are the engines that must be designed to withstand high loads for long periods of work, especially in the critical areas of the piston that are thermally very loaded. Today’s modern aluminum pistons with ring carrier can meet these requirements. The ring carrier is specially designed for formation of the first piston ring groove in highly loaded diesel engines. Wear-resisting piston ring carrier can reduce the temperature at piston head, increase the resistance of piston to wearing and dramatically increase the lifetime of the piston (Worden et al., 2000; Viala et al., 2002; Belov et al., 2005; Engine Australia, 2012; Manasijevic, 2012). In the meantime, it can also improve the air-tightness of the piston in the cylinder, increase the efficiency of combustion, reduce emission and air pollution and contribute to the environment. The ring carrier must have a very similar coefficient of thermal expansion with aluminum piston alloy. If this were not the case, rapid and massive temperature fluctuations experienced in the piston crown would result in the piston alloy and the Alfin insert expanding and contracting at very different rates and values. Manufactures use very different shapes of the ring carrier to help lock it into the casting. The real strength of the insert in the piston is the result of a molecular or atomic bond between the insert and piston materials. Producers also often use other improvements: cooled ring carrier, insertion of pin bore bushings, etc. The ring carrier is ring-shaped with different cross sections. Most often, its outside diameter is 70–200 mm and its inner diameter is 50–180 mm (Manasijevic, 2012). The ring carrier is produced by centrifugal casting.

This would cause failure of the bond between the two materials. The Alfin process is a method for preparing a ferrous surface for intermetallic bonding. The alfin bonding process is commonly used to bond a non-ferrous Al alloy and a ferrous alloy-such as aluminum diesel engine pistons and Ni-Resist ring carriers-directly together. It is well known that cast iron contains carbon as a result of the casting process. During the piston casting, the ring carrier is soaked by the Alfin bond process, which results in a strong connection with the piston material. During this process, an intermetallic layer composed of Fe_xAl_y is formed on the border between the two different materials by the diffusion of atoms (Willcox, 2000; Worden et al., 2000; Belov et al., 2005; Acar et al., 2010; Manasijevic, 2012).

The formation of an intermetallic bond layer is a very complex process. In the manufacturing plant, the formed intermetallic bond may also be damaged during the machining process. The intermetallic bond between the ring carrier and piston must be able to withstand prolonged exposure to the high-pressure and temperature environment of the diesel engine. Weak cohesion may result in the debonding of the ring carrier. This debonding causes devastating damage to the piston while the engine is in service. For the aforementioned reasons these processes should be controlled precisely. Ultrasonic inspection techniques are widely used in the industry where a non-destructive evaluation is used for quality testing of alfin bond between ring carrier and piston (Acar et al., 2010; Manasijevic, 2012). The manufacturers of ultrasonic devices have special ultrasonic instruments with piston inspection software.

The aim of this paper is examine to formation of metal connection (alfin bond) between the ring carrier and aluminum piston alloy and identification of formed intermetallic phase Fe_xAl_y.

2. MATERIALS AND METHODSTOP

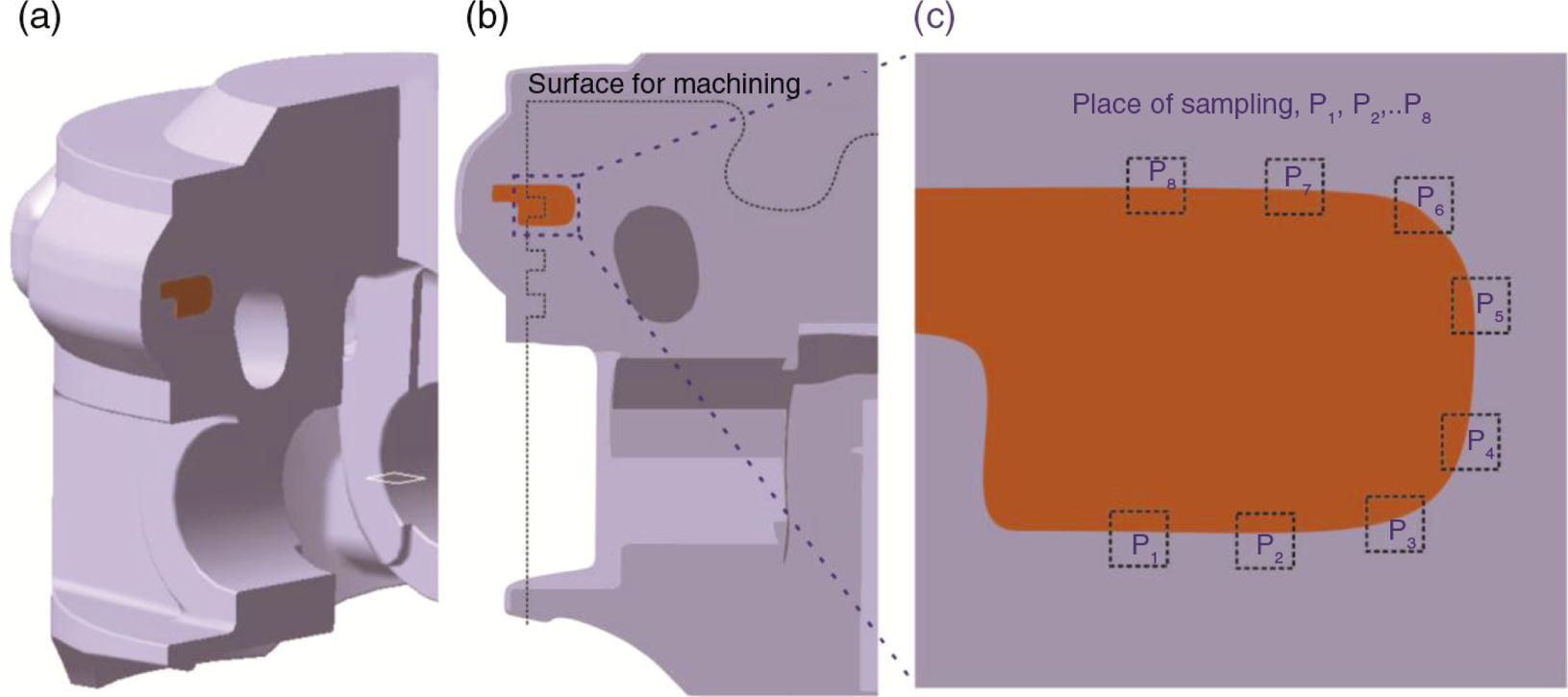

The tests were performed on the Ø89 mm piston with a cooling channel for diesel engine type OM604 with turbocharger. A CAD model of the piston casting (with a cross-section of the investigated) is shown in Fig. 1. The mass of the piston casting with a pouring system and feeder is 1275 g and the mass of the piston cast is 868 g.

Piston alloys (Table 1) of approximately eutectic composition were used to analyze the formation of alfin bond with a ring carrier.

Chemical composition and balance hardness (HBS 120–160 (Manasijevic, 2012), in this case 140–150) according to well-known manufacturers Mahle, KS, Federal Mogul and local piston manufacturer Serbian Concern Petar Drapsin-Mladenovac (PDM), Serbia (Manasijevic, 2012), are given in Table 2. Ring carrier materials are melted in induction furnaces at 1450 °C. Then the final shape of the ring carrier is produced by a centrifugal casting machine. These ring carriers are placed in the piston mold and the molten piston material is poured in. The most important thing is that the Ni-Resist die cast material (ferrous) must be bonded with a non-ferrous piston material during the casting of the piston. The insertion of the ring carrier in the piston mold lasts 5 seconds while the time to the total soaking of the ring carrier is 25 seconds. The piston mold temperature is 245–275 °C.

Melting of alloy for piston cast was performed in tub-like electro-resistant inclined furnace, type RIO 750, with power of 80 kW and capacity of 120 kg h⁻¹. Preparation of Al-alloy was performed in electro-resistant muffler-like furnace with black lead muffler, type RIO 250 with power of 85 kW. For improving mechanical properties, during preparation, the piston casting was exposed to melt treatment processes (refining, modification and degasification). All three operations were performed at 725±5 °C. The temperature of the melt was measured using a Ni–Cr–Ni digital pyrometer.

The casting of the investigated pistons was performed on a semi-automatic machine subject to the manufacturing conditions in the PDM, Serbia. The ring carrier was inserted manually. The machine has an automatic cycle operation. Casting machines tilt by 20 to 0 degrees during casting (in this case, they started tilting 7 seconds after the start of casting).

An optical microscope (Olympus GX51) with a magnification of up to 1000X was used for visualization and collecting the data for determining the microstructure of the material. Samples for metallographic analysis were acquired by an Olympus DP70 color digital camera (12.5 megapixel resolution). Metallographic samples were cut out from the piston, polished and electrolytically etched in a HF reagent for 15 seconds. The samples were observed under a scanning electron microscope (SEM) TESKAN VEGA TS5136LS equipped with energy dispersive spectrometer (EDS, Bruker).

3. RESULTS AND DISCUSSIONTOP

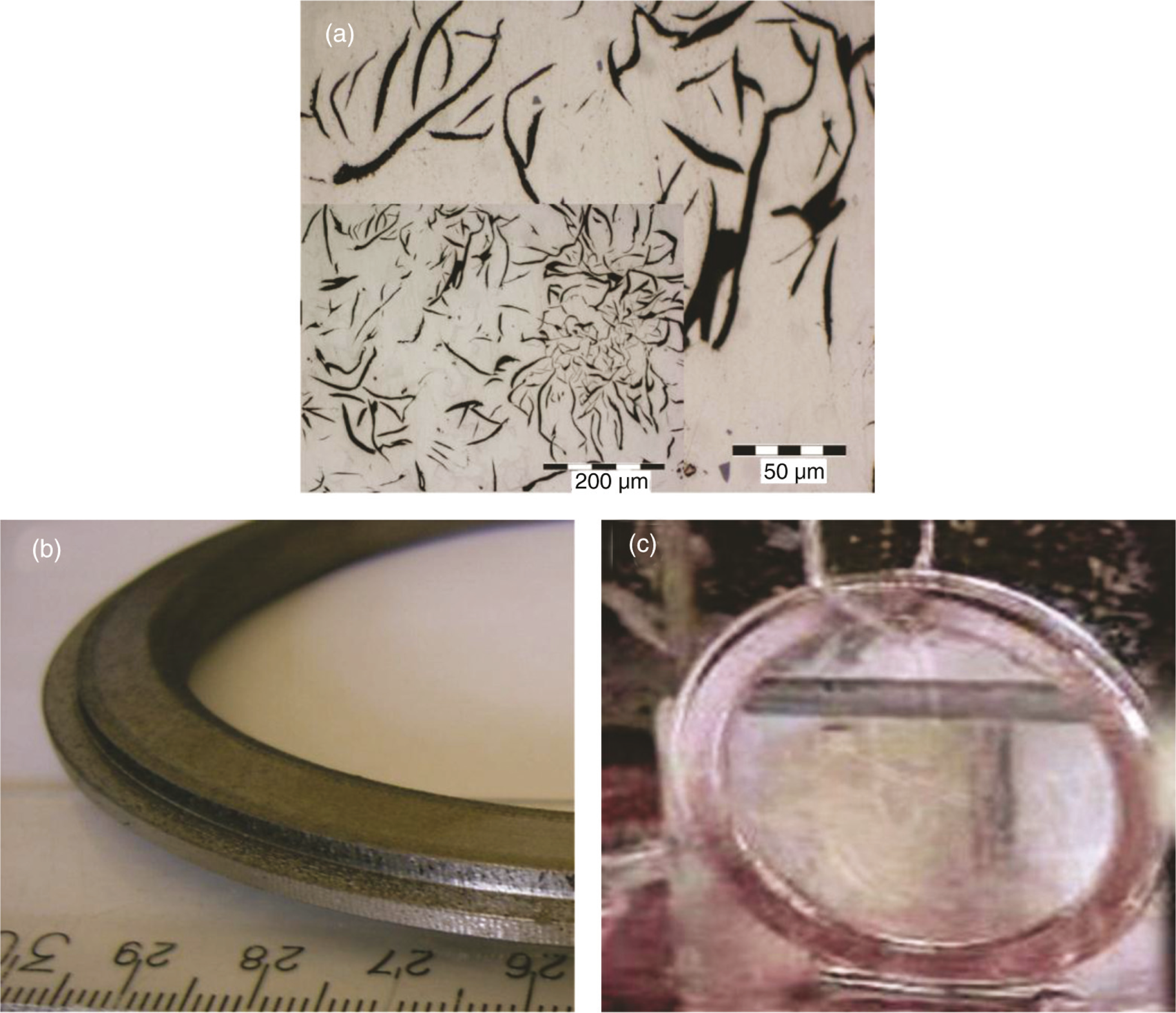

In this case, austenitic cast iron with lamellar graphite (Ni-Resist, Fig. 2a) was used to produce the ring carrier. The microstructure of the ring carrier resulted in graphite distribution in austenite: ASTM type A or B, size 4–6. This ring carrier is observed to embed with the Al alloy after solidification.

After casting and machining (Fig. 2b), the ring carrier was degreased by ultrasound and held in the alloy casting (Fig. 2c) at the melt temperature for a certain time. The ring carrier was heated at 760–780 °C (6.5 minutes), uniformly coated with a thin liquid piston alloy layer (30–100 μm thick) and pulled out of the alloy bath; in a second step, the hot aluminized ring carrier was immediately placed in a preheated metallic mold and fresh liquid piston alloy was poured into that mold. Afterwards, the ring carrier was inserted using specially designed gripper in the mold. It then took about 10 seconds for filling the mold, a period of time during which a maximum temperature of 700–720 °C was reached at the insert/alloy interface and 110 seconds more for complete solidification of the casting which was then air-cooled to room temperature.

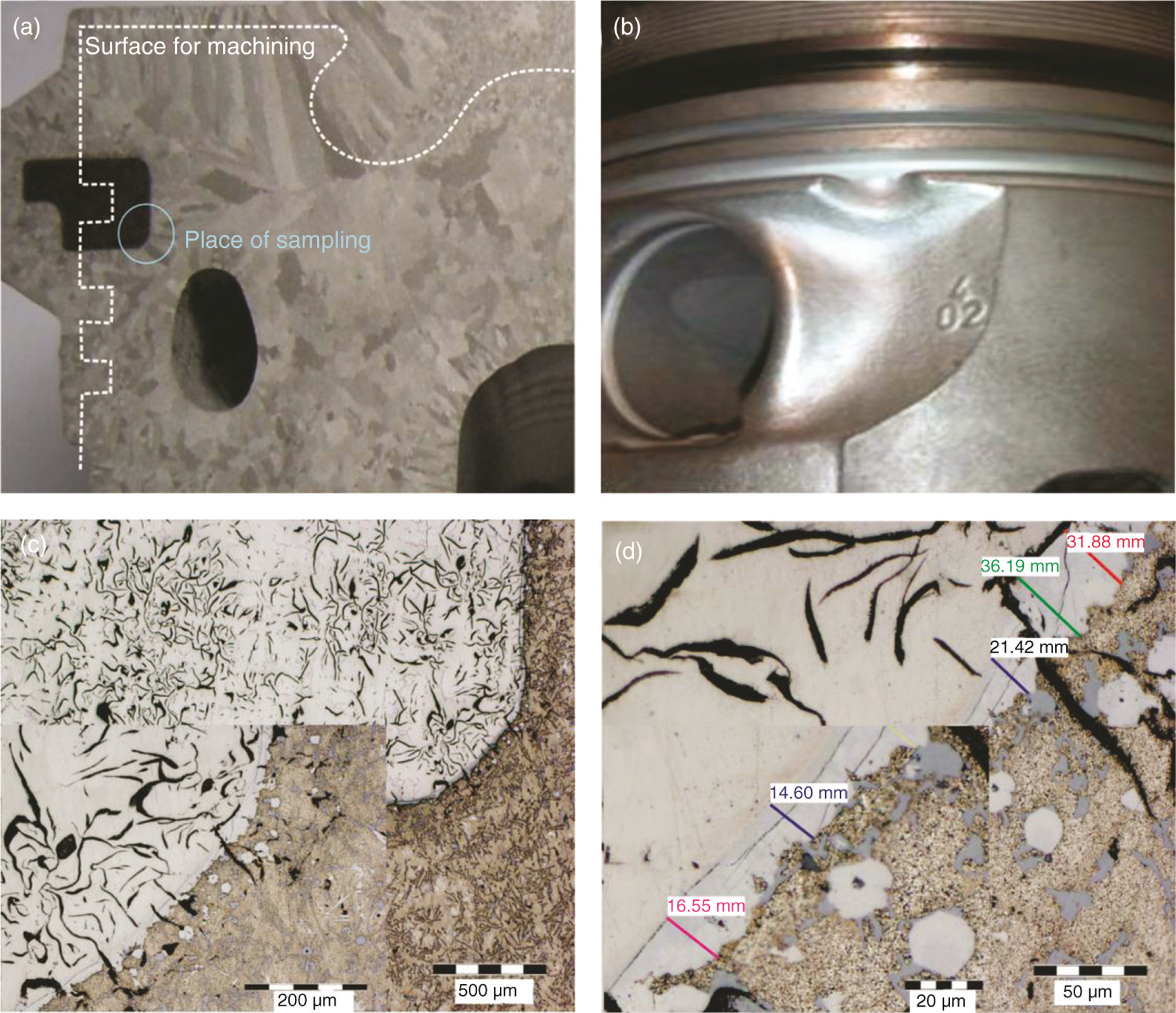

Figure 3a shows the macrostructure of the piston cross section, where successful alfin bond between the ring carrier and the piston alloy is shown. Then the piston is subjected to machining to create the final shape (Fig. 3b). In Fig. 3a and Fig. 3b visually see that a good connection has been established between the ring carrier and piston alloy. The thickness of the diffusion layer was measured (Sample 1 shown in Fig. 3d).

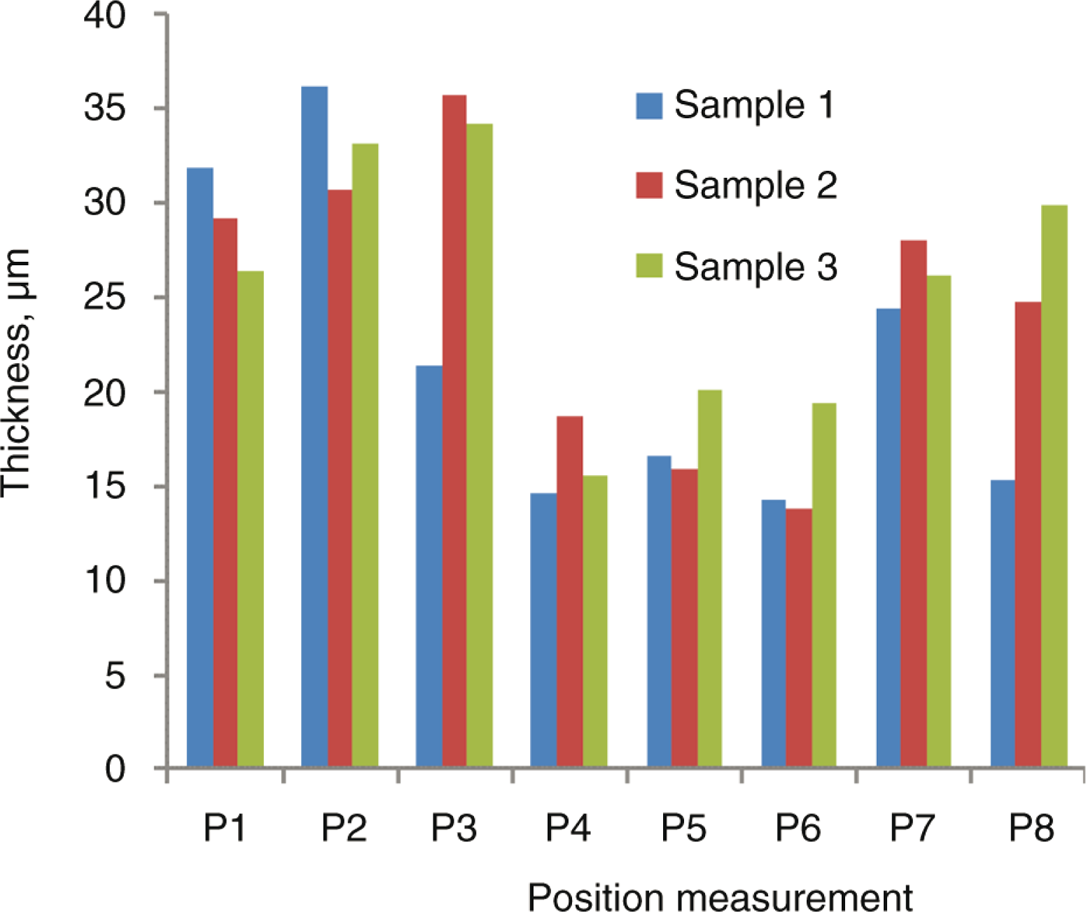

The alfin bond analysis was made at the points indicated in Fig. 1. The results show that the thickness of the diffusion layer formed in the piston alloy is in the range from 14.60–36.19 μm (Sample 1, Sample 2 and Sample 3) see Fig. 4. The average is 27.83 μm for Sample 1, 24.58 μm for Sample 2 and 25.61 μm for Sample 3. The diffusion layer thickness allowed by international manufacturers of pistons for diesel engines is 10–70 μm (Manasijevic, 2012).

The microstructure of the aluminum piston alloy have different structures depending on the content of silicon and other alloying elements (Belov et al., 2005; Manasijević et al., 2011; Manasijevic, 2012; Manasijevic et al., 2013; Manasijević et al., 2014).

The alfin bonding process begins with the growth of an Al alloy intermetallic surface layer on the ring carrier by immersion of the ring carrier in a molten Al alloy bath. The alfin bond is a real bond, which has a chemical composition close to Fe_xAl_y and is formed by the Fe and Al alloy.

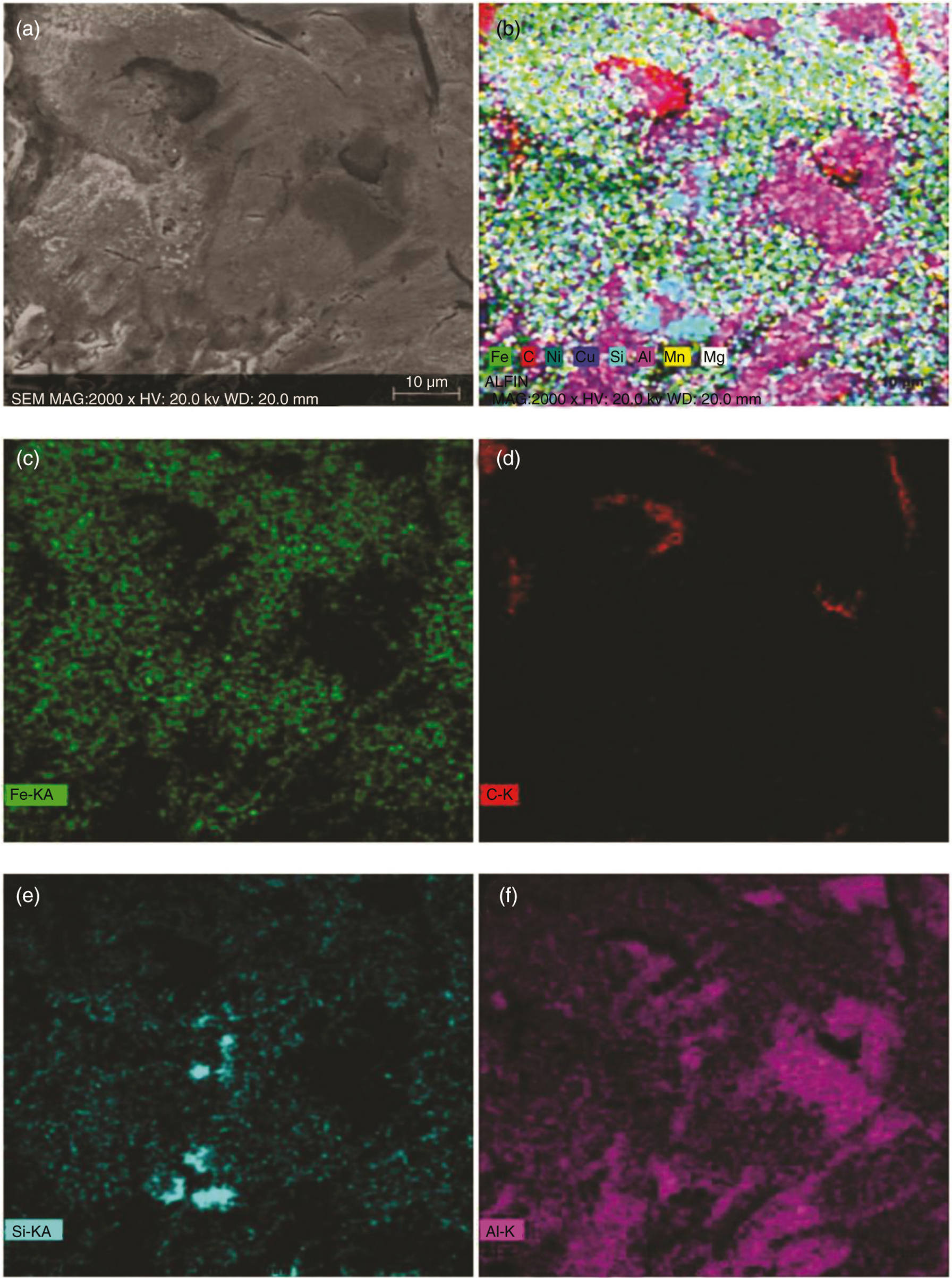

Characterization by optical and SEM microscopy, a qualitative analysis of the phases in the intermetallic bonding layer was conducted by EDS scanning electron microscopy. Figure 5a shows a SEM analysis while. Figure 5b shows an EDS mapping of all the elements in the intermetallic bonding layer. Figures 5c to 5f show the EDS mapping of other important elements.

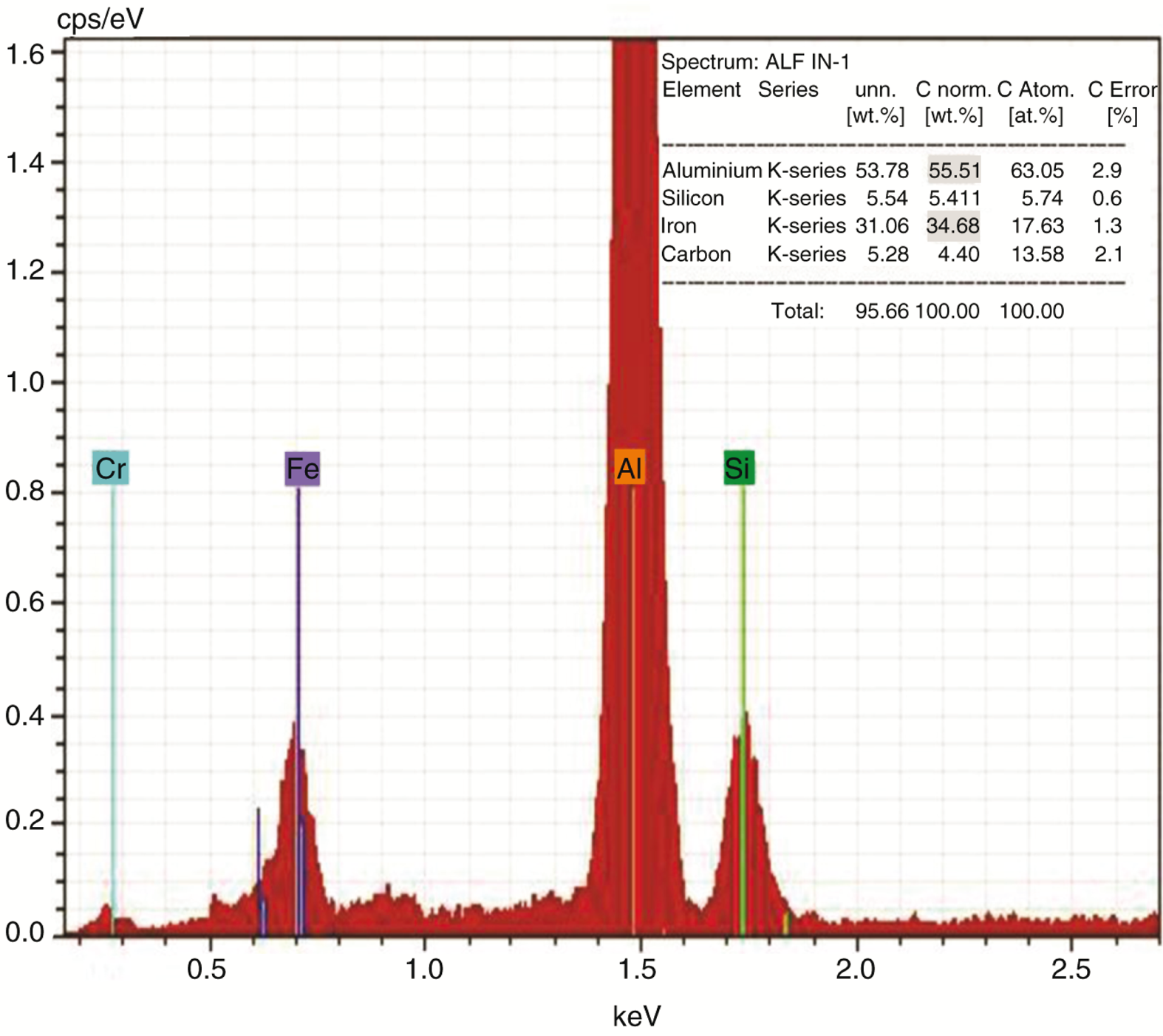

Figure 6 shows that the EDS analysis detected the presence of an intermetallic bonding layer (the FeAl₃ intermetallic phase was formed).

In accordance with the the Fe-Al binary phase diagram, other phases can be expected in addition to the identified FeAl₃ (Fe₂Al₅) phase (Kattner, 1990).

4. CONCLUSIONSTOP

Based on the analysis of the experimental test results presented in this paper, it could be concluded that:

The results presented in this paper are only an introduction to further ongoing research related to the phase composition of the intermetallic bonding layer studied by the XRD analyses and the testing of the mechanical strength of the bond.

ACKNOWLEDGMENTSTOP

The research presented in this paper was funded by the Ministry of Education and Science of the Republic of Serbia.
