Effect of ZrO₂ and L-Cys nanoparticles as dopants in sol-gel of mesoporous silica coating for corrosion protection of AZ61 magnesium alloy

Leonardo Hernández^a, Lucien Veleva^a,*, Federico R. García-Galván^b, Juan Carlos Galván^b

^aCenter for Investigation and Advanced Study (CINVESTAV-IPN), Applied Physics Department, Carr. Ant. a Progreso km. 6, C.P. 97310, Merida, Yucatan, México

^bCentro Nacional de Investigaciones Metalúrgicas (CENIM, CSIC), Avda. Gregorio del Amo, 8, 28040 Madrid, España

(*Corresponding author: veleva@cinvestav.mx)

1. INTRODUCTIONTOP

Magnesium (Mg) and its alloys have attracted the attention of the scientists as biodegradable medical materials for temporary implants in the human body (Zhang et al., 2010). Because of their mechanical properties similar to those of natural bone, Mg-alloys have been widely studied and proposed in bone fixation (Wang and Shi, 2011). Another important feature is that Mg-based implants may degrade in contact with the physiological body fluids, releasing Mg ions through electrochemical corrosion process, thus eliminating the need for secondary extraction surgery (Park et al., 2013). These implants may have greater benefits with the presence of drugs, as a low concentration of intentional drug can largely resolve local complications around the implant (Liu et al., 2013). Therefore, this strategy has been applied in several devices, such as orthopedic implants. To meet this objective, the surface of the device is generally coated or modified to allow local administration of drugs.

The corrosion of Mg in aqueous solutions is faster in the presence of chloride ions and this leads to a rapid loss of mechanical strength of metal after its implantation. During the corrosion process, evolution of the hydrogen gas occurs (Eq. (4)), which may accumulate near the place where the implant was introduced, potentially damaging the surrounding tissues; likewise, bringing the local pH to alkaline values, because of the release of OH- ions (Liu et al., 2013). The electrochemical corrosion develops according to the following reactions:

A physical barrier between the surface of the metal and the physiological body fluids could be created by coating the surface with a polymeric layer, which would also provide a mechanically strong bond with the bone (Zheludkevich et al., 2006; Rueda et al., 2016). In this case, the adhesion between the Mg and the polymer plays an important role in the useful life of the coating, which depends on its stability when loaded with drug nanoparticles (Park et al., 2013). Several application techniques for thin film coating formation on metal surfaces have been used: for example, plasma deposition (Luo and Cui, 1998), chemical conversion (Hernández-Alvarado et al., 2014) and the sol-gel method (Tan et al., 2005; Supplit et al., 2007; Zhong et al., 2008; Minti et al., 1991), among others.

The characteristics of sol-gel coatings make them suitable for reducing the corrosion degradation rate of the metal and their use is a recent but promising approach. Sol-gel coatings have demonstrated good chemical stability and control of oxidation (corrosion). Furthermore, the sol-gel technique is respectful towards the environment, without the need for specific pretreatment of the metal surface and the formed coatings provide a protective resistance for the metal, being nontoxic (Wang and Bierwagen, 2009). Other advantages are processing at low temperatures, simple and economical preparation. Sol-gel coatings have been applied on different materials, including those of Ti6Al4V implants (Gallardo et al., 2003; Barranco et al., 2014b).

Sol-gel hybrid coatings are more popular than the inorganic oxide layers formed on the metal surface in terms of protection against corrosion, for two main reasons (Wang and Bierwagen, 2009). First, hybrid coatings may form a thicker layer on a micrometer scale without cracks and use a much lower cure temperature (generally <100 °C) than 400–800 °C for oxide layers. Secondly, the hybrid sol-gel offers greater adaptation in terms of adhesion to anti-corrosion additives, such as inhibitors, paints, pigments, etc., so that the protection against general corrosion with sol-gel may be substantially improved (Wang and Bierwagen, 2009). The organic-inorganic hybrid compounds based on siloxane, prepared by the sol-gel technique, present unique properties that arise from the synergy between the properties of both components: they mix the properties of organic polymers (hardness, elasticity) with the properties of inorganic sol-gel (hardness, chemical resistance) (Novak, 1993; Judeinstein and Sanchez, 1996; Stein et al., 2000; Gomez-Romero, 2001; Kahraman et al., 2006).

Hybrid sol-gel coatings (Atik and Zarzycki, 1994; De Lima Neto et al., 1994; Atik et al., 1995; Caruso et al., 2001; Gusmano et al., 2007; Zhang et al., 2007; Tamar and Mandler, 2008; Radhakrishnan et al., 2009; Córdoba et al., 2016) applied on metal surfaces have been manufactured using nanometric sized particles of TiO₂, Al₂O₃, ZrO₂ and SiO₂. Such coatings formed on aluminum are reported having a thickness of 7 μm, dense, smooth and inhibiting the corrosion of the metal substrate (Chen et al., 1998). Sayilkan et al. (2003) reported the development of hybrid sol-gel coatings based on alkoxylan precursors, such as APS (Behzadnasab et al., 2011; Mirabedini et al., 2012), AEAPS, GPTMS (Montoya et al., 2014) and MAPTMS (El-Hadad et al., 2014), which showed good adhesion to the aluminum surface, as well as high chemical, mechanical and thermal stability. The properties of bioactivity and anticorrosive protection of organic-inorganic hybrid MAPTMS (g-methacryloxypropyltrimethoxysilane) and TMOS (tetramethylorthosilicate) with a precursor phosphorus (triethylphosphite (TEP), have been also evaluated. The introduction of phosphorus has been carried to the molecular level in the hybrid organic-inorganic network (Barranco et al., 2014b). TMOS is commonly used as an inorganic precursor in the manufacture of sol-gel coatings (Jiménez-Morales et al., 2002; García-Heras et al., 2004; Zheludkevich et al., 2005; Barranco et al., 2010; El-Hadad et al., 2014). In another reported investigation (Storey and Rawlins, 2014), benzotriazole (BTA) and L-cysteine (L-Cys) were added as inhibitors in sol-gel (MAPTS-TMOS) to improve the efficiency of corrosion protection, as well as for the self-healing properties of the coating defects. After exposure to 0.006M NaCl, the coatings formed by MAPTMS/TMOS/BTA showed higher electrochemical impedance, because of the released BTA from the sol-gel surface and gradually blocked the defects of the coating. The formation of a stable adsorption layer on the surface of the Mg substrate is suggested, generating a good protection against corrosion in the active anodic areas of the metal (Guo et al., 2009). Shchukin et al. (2006) also obtained similar results for BTA as inhibitor adsorbed on the surface of aluminum alloys, because of its release from the formed thin layer, hindering the corrosion processes. The coatings of MAPTMS/TMOS/L-Cys achieved impedances in the order of 10⁶ Ω after 1 hour of exposure in chloride solution, which value is greater than 10⁵ times that of unmodified coatings (MAPTMS/TMOS). After a longer time of exposure (14 hours), the impedance of the sol-gel films suffers a decrease. However, when they are doped with BTA and L-Cys, the change in the impedance is retained and it is about 10⁶ Ω and 10⁵ Ω, respectively, compared to that of coating without doping (10⁴ Ω). The results of LEIS suggested that automatic recovery properties occur in the MAPTMS/TMOS/BTA films (Storey and Rawlins, 2014).

Other studies report the incorporation of hydroxyapatite particles (HAp) in the matrix of a hybrid sol-gel, resulting in more effective barrier properties and better protection against corrosion of Ti₆Al₄V alloy surface, covered by a suitable film thickness (Barranco et al., 2014a). The silanes contain hydrolysable alkoxy-groups, which are converted to hydrophilic silanol groups (Si-OH). When these groups come into contact with metallic surfaces covered with hydroxyl-group (Me-OH), a condensation reaction takes place upon curing, forming metal-siloxane bonds (Me-O-Si) that cause the silane to adhere to the metal surface (Barranco et al., 2014a). In the excess of Si-OH groups in the adsorbed layer, a siloxane network (Si-O-Si) is formed, which prevents the penetration of corrosive agents such as water, oxygen and chloride ions (Barranco et al., 2014a). The corrosion resistance of the organic-inorganic hybrid coatings prepared with the sol-gel technique is based on the properties of any existing physical barrier between the metal and the environment, so that a homogeneous coating free of defects is required (Barranco et al., 2014a). Such coating should be uniform, a good adherent, pore-free and having a self-healing ability in the case of physical damage occurring in the coating surface (Gray and Luan, 2002). The use of coatings with Cr (VI) is prohibited, although they provide a good protection against corrosion, because of the release of these ions which are harmful to health and the environment (Gray and Luan, 2002).

The purpose of this work was the development and characterization of sol-gel hybrid coatings based on GPTMS+TMOS as precursors and doped with nanoparticles of ZrO₂ and L-Cys nanoparticles, considered as inhibitor for protection of the commercial magnesium alloy AZ61surface against the corrosion. For the choice of the appropriate concentration for the composition of GPTMS + TMOS + L-Cys and GPTMS + TMOS + ZrO₂, the yield of GPTMS + TMOS coatings with the addition of ZrO₂ and L-Cyst in different concentrations was evaluated after each coating exposure for 14 days in 0.6M NaCl solution. Later, the selected hybrid sol-gel coating was loaded with both nanoparticles to obtain GPTMS + TMOS + L-Cys + ZrO₂ coating. The research was carried out with different electrochemical and surface analysis methods, such as measurement of the open circuit potential value (OCP), Electrochemical Impedance Spectroscopy (EIS), Scanning Electron Microscopy (SEM) and X ray Diffraction (XRD).

2. MATERIALS AND METHODSTOP

2.1. Samples and solution preparation TOP

The commercial rolled AZ61B, supplied by Magnesium Elecktron (UK), was employed as test material and its provided certified composition (wt.%) is: 6.2 Al; 0.74 Zn; 0.23 Mn; 0.04 Si; 0.004 Fe; 0.0013 Ca and the balance Mg. The square samples (2 x 3 x 0.3 cm) were cut and abraded with 350, 500, 1200 and 2000 grit SiC paper and mirror polished with 3-μm and 1-μm diamond paste. The 0.6 M NaCl solution was prepared from analytical grade reagent (Sigma-Aldrich, St. Louis, MO, USA) and ultrapure deionised water (18.2 MΩ·cm).

2.2. Sol-gel hybrid coatingTOP

The sol-gel precursor was composed by GPTMS ((3-glycidyloxypropyl) trimethoxysilane) and the inorganic TMOS (tetramethyl orthosilicate), in a proportion of 4:1 by weight, both added to ethanol-water solution and acetic acid (HAc) as catalyst. The pH of the obtained sol-gel was maintained at a constant value of 4.0.

Nanoparticles of L-Cys (L-cysteine) were incorporated into the sol-gel precursor in three molar concentrations: 0.3, 0.6 and 0.9%, each amount of these added to 20 ml of the sol-gel precursor and mixed for 24 h with a magnetic agitator. The ZrO₂ obtained from zirconium (IV) tert-butoxide (ZTB) was also evaluated for three molar concentrations: 0.3, 0.6 and 0.9%, each amount of this was also added to 20 ml of the sol-gel precursor and mixed for 24 h with a magnetic agitator. In the alcohol-water solution of the sol-gel precursor, ZTB undergoes very rapid hydrolysis, so that flocs and zirconia precipitates tend to form. The addition of a small amount of acetyl acetone (HacAc) and deionised water allows the Zr⁴⁺ ions to remain coordinated (Barranco et al., 2010).

The experiments in this study were carried out with the mixture of the sol-gel precursor and inhibitors of ZrO₂ and L-Cys, chosen in those concentrations that showed better protection resistances for AZ61, according to the Nyquist and Bode (EIS) diagrams.

The hybrid sol-gels were deposited on the metal samples, using an elevator, in such a way that the speed of immersion and ascent of the sample could be controlled. The speed was 3 mm·s⁻¹, without keeping the samples submerged between the two events. Once out of the solution, the samples were suspended vertically inside a convection oven (Heraeus) for 3 hours, curing at 80 °C. The appearance of the coating was examined with the naked eye with respect to color, transparency, uniformity, homogeneity or any present defect.

2.3. Electrochemical tests (EIS)TOP

The experimental setup consisted of a three-electrode cell (inside a Faraday cage) as follows: a saturated Ag/AgCl/KCl reference electrode, a platinum spiral as a counter electrode and AZ61 samples as working electrode. The cell was connected to Metrohm / EcoChemie Autolab PGSTAT302N potentiostat/galvanostat, equipped with a FRA32M frequency response analyzer module and a PARSTAT 4000 potentiostat. The AZ61 samples (working electrodes) were exposed to 100 ml of 0.6M NaCl solution at temperature of 21 ± 1 °C, for different periods of time (0 h, 1 h, 3, 5, 7 and 14 days) and before the EIS measurements the open circuit potential (Eoc) was recorded. The EIS measurements were conducted at OCP conditions, applying 10 mV sinusoidal signal amplitude with frequencies ranging from 10⁻⁵ to 10⁻² Hz, taking 10 points per decade. The surface exposed to the electrolyte was 1.0 cm² delimited by a circular ring of rubber. All tests were repeated at least 3 times to verify the repeatability of the results. The Elchem Analyst™ Gamry’s dedicated data-analysis program was used to build an equivalent-circuit model and then to fit that model to experimental data.

2.4. Microstructure characterizationTOP

The SEM-EDX Phillips and XL-30 ESEM JEOL JSM-7600F scanning microscopes were used to characterize the morphological and elemental changes occurring on the surface of AZ61 coated with sol-gel samples, after their immersion in 0.6M NaCl. Their surfaces were treated previously with a solution composed of CrO₃, AgNO₃, Ba(NO₃)₂ and water, according to the ISO 8407 (1991) to remove only the corrosion layers, rinsed with distilled water and ethanol, then dried in warm air flow. The crystalline phases of the formed corrosion products were identified by X-ray diffraction technique (D8 Advance diffractometer Bruker) with Bragg geometry of 0.5-second step time (0.02 step size rotation), 3° angle, Cukα radiation and 34 kV/25 mA.

3. RESULTS AND DISCUSSIONTOP

3.1. Open circuit potential (Eoc)TOP

Table 1 presents the steady-state values of the open circuit potential, measured after exposure of untreated AZ61 and sol-gel coated samples, varying the concentration of the L-Cys and ZrO₂, exposed for 14 days to 0.6M NaCl. This information was used to compare the corrosion behavior of the studied systems, with an addition of L-Cys and ZrO₂, introduced in the sol-gel coatings in different concentrations. It may be noted that at the end of this experiment the AZ61 sol-gel coated (GPTMS+TMOS precursors) sample showed an E_oc value of 20 mV less negative than that of the AZ61 untreated surface. The addition of 0.3% L-Cys or 0.6% ZrO₂ had a more significant effect on E_oc, shifting the values to less negative.

3.2. Electrochemical impedance spectroscopy (EIS)TOP

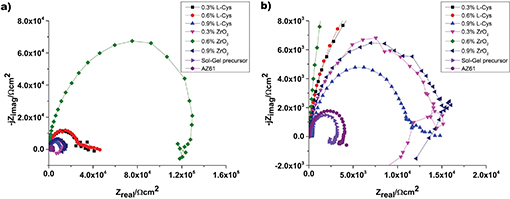

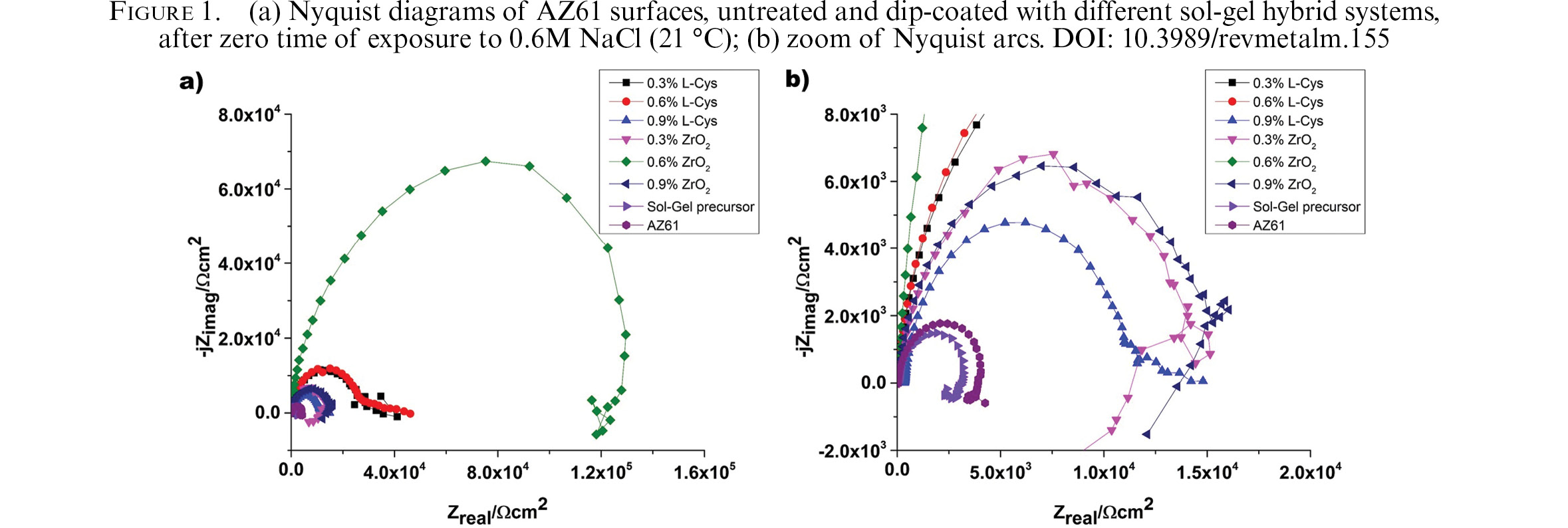

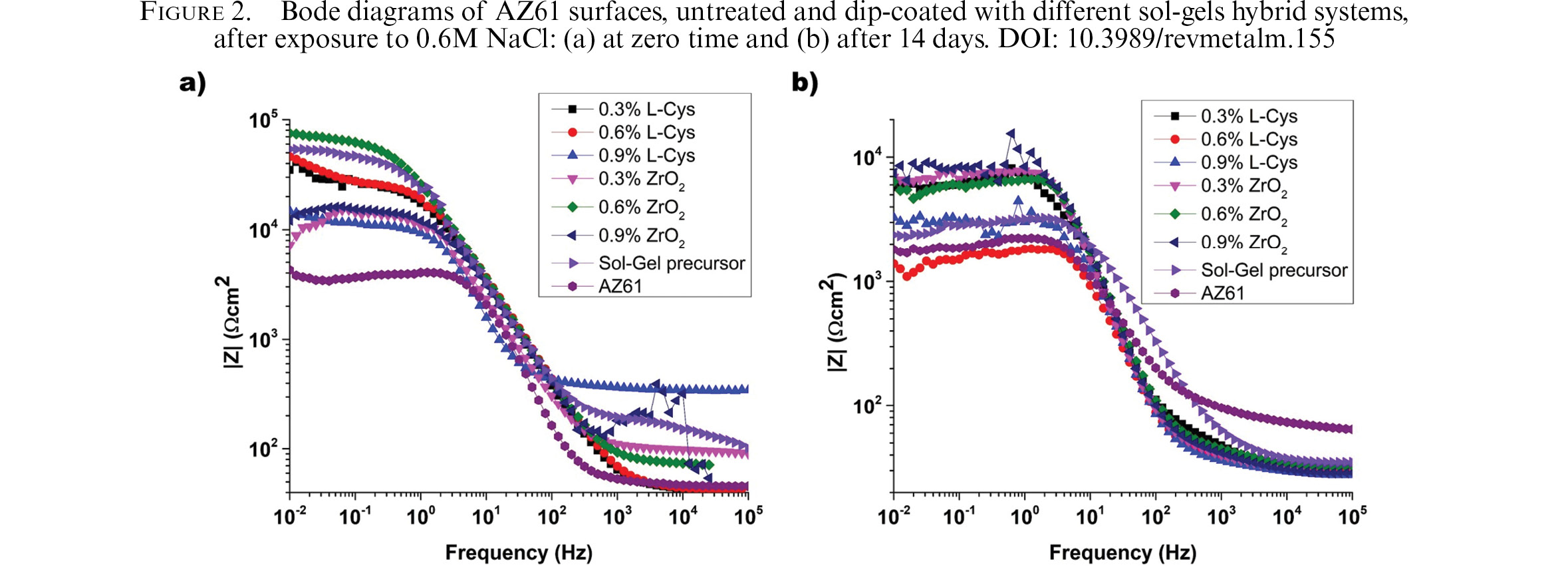

In the search for a sol-gel hybrid coating that delays the corrosion process of the AZ61 Mg alloy, the Nyquist and Bode diagrams of the coatings (Table 1) were compared, after exposure in 0.6M NaCl (21°C) to different periods, from zero hours to 14 days (Fig. 1). Bode diagrams (Fig. 2) were used to obtain the values of the corrosion resistance R_corr (R_s + R_ct, solution resistance and charge transfer resistance, respectively) at zero time and after 14 days of exposure to 0.6M NaCl (Table 2). It can be noted that L-Cys does not present inductive arc at low frequencies; however, for ZrO₂ it is well pronounced at 0.3% and 0.9%, as well for sol-gel precursor. The absence of inductive arc may be a consequence of the difference in the porosity of the compared sol-gel coatings. The changes of R_corr values with the time of exposure (Table 2) could indicate that in the presence of the aggressive chloride ions the surface of AZ61, as well the layers of sol-gel coatings, have undergone transformation. The Nyquist diagrams and the values of R_corr (Table 2) of the studied systems suggested that the addition of 0.6% ZrO₂ and 0.3% L-Cys could be optional additives, which could provide better corrosion resistance of sol-gel hybrid based on GPTMS+TMOS precursors, applied as coating on AZ61 surface.

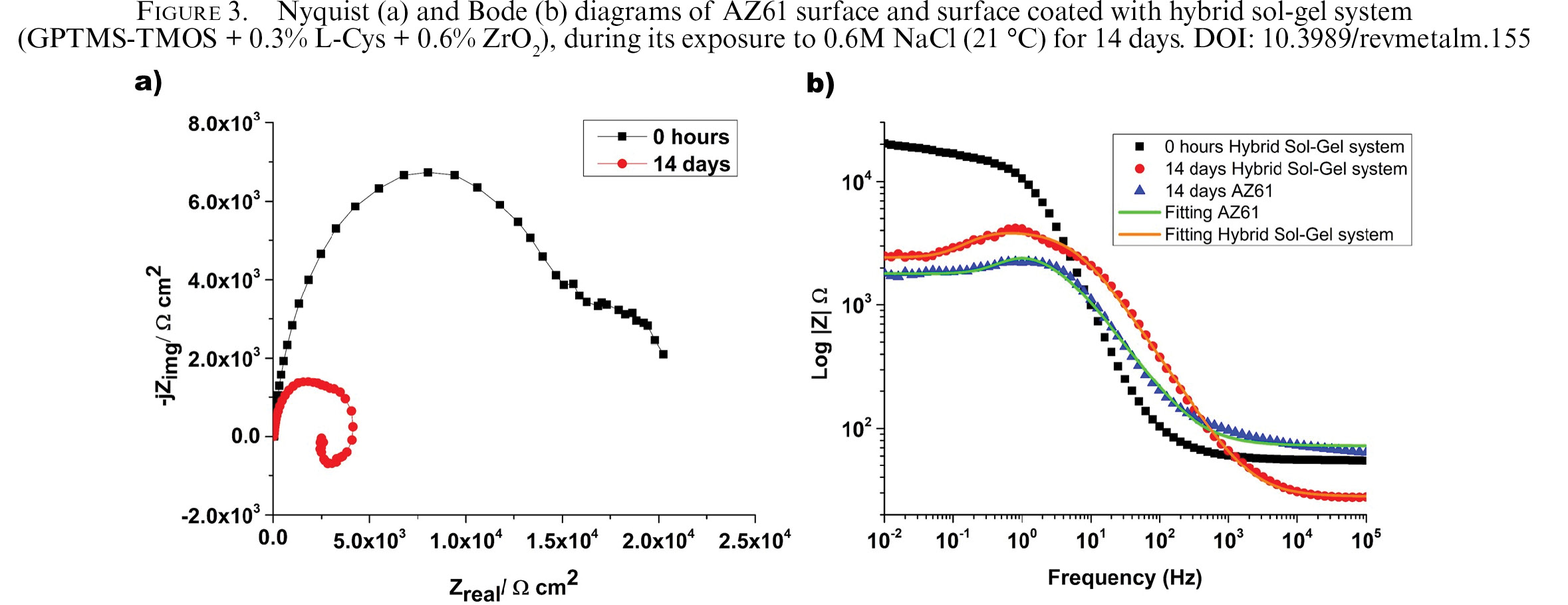

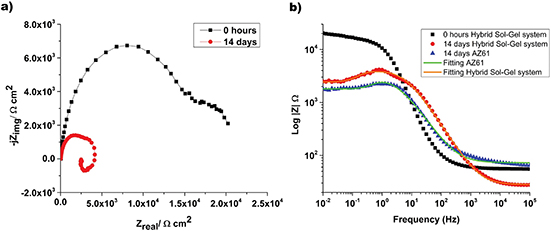

The electrochemical behavior of the newly formed sol-gel hybrid coating was monitored by Nyquist and Bode EIS diagrams, during its exposure to 0.6M NaCl for 14 days. Figure 3 presents the initial and final (at 14 days) diagrams. The corrosion process was mainly controlled by the charge transfer resistance (R_ct) and at the end of this experiment one order of decrease in Rct value was observed, as an indication for surface changes.

Figure 4 presents the equivalent-circuit model built, fitted to the experimental EIS data (Fig. 3) and the characteristic EIS parameters are resumed in Table 3. The constant phase element CPE1 (Fig.4), as a part of the equivalent circuit, describes the behavior of the double layer as an imperfect capacitor, because of the heterogeneity of AZ61-coating-electolyte interface and its value is a function of the sol-gel coating thickness: the greater the thickness, the lower the value. Meanwhile, the components R3 and L1 (resistance and inductor, respectively) could be associated with phenomena of adsorption-desorption of species, which alter the electrode potential and AZ61 corrosion rate (Aperador Chaparro et al., 2012). The values of n component (Fig. 4 and Table 3) are a function of the surface imperfection and roughness: value of 1.0 corresponds to perfectly smooth surface. The value of Chi in the order of 10⁻³ is acceptable (Table 3), because the corrosion process of such system is very complex.

3.3. SEM-EDS and XED analysisTOP

SEM-EDS and XRD techniques provided an additional information for the changes that have occurred on the untreated AZ61 surface and that of dip-coated with the hybrid system (GPTMS-TMOS+0.3%L-Cys+0.6% ZrO₂), after their exposure for 14 days to 0.6M NaCl. Figure 5 compares the morphology of AZ61 surfaces, untreated and dip-coated, after removal of the corrosion layer and coating. The corrosion attack (Fig. 5a) on the untreated AZ61 surface is well localized in cracks, forming caverns, where the Cl⁻ ions have penetrated the alloy surface, promoting the deterioration of the Mg-matrix. On the dip-coated surface, the corrosion attack mostly occurs through pitting with a different diameter size.

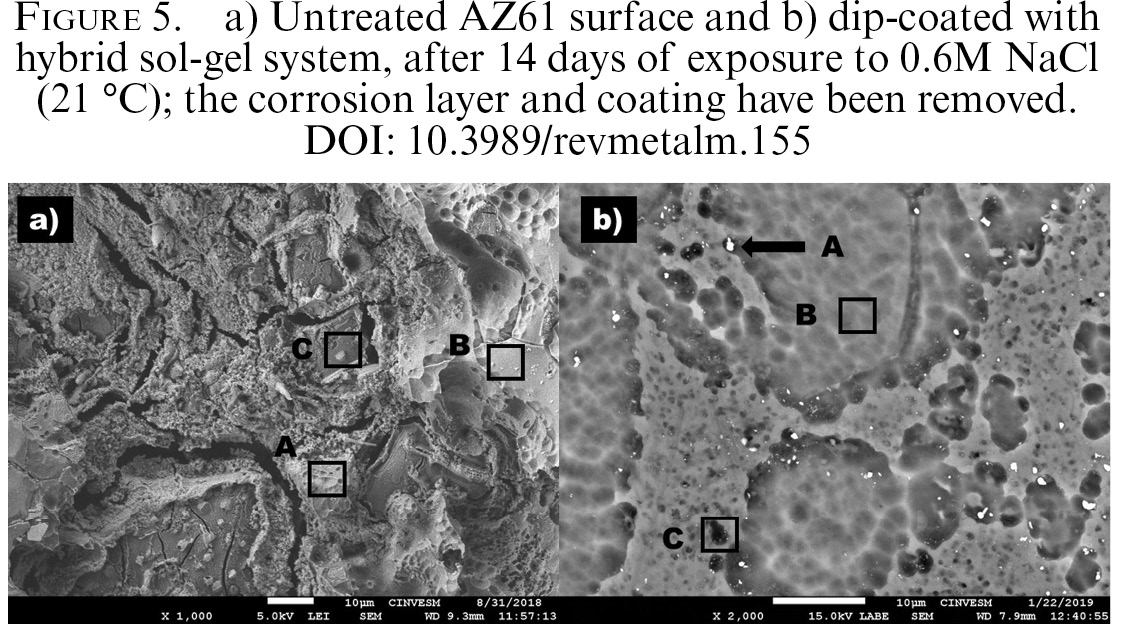

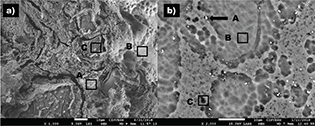

EDS elemental analysis of several zones on the AZ61 untreated surface (Fig.5a), whose exhibit distinctive morphologies after the removal of the corrosion layer, revealed that Mg presents the largest content (in the zones A and B), contributed by the matrix of the alloy. The detected Al (6.43 wt. %) and Zn (0.77 wt. %) are as part of the AZ61 magnesium alloy composition. The elemental content of the zone C may correspond to sites of Al₈Mn₅, as intermetallic inclusions nucleated in the α-Mg grains (Pan et al., 2012), in the presence of NaCl. Manganese is one of the common elements added to most commercial magnesium alloys, essential for enhancing the corrosion resistance and these intermetallic particles are usually present in most of commercial Mg–Al based alloys (Han and Liu, 2016). The simulation of the micro-galvanic cathodic behavior of Al-Mn intermetallic particles has confirmed their cathodic behavior and the deposition of the corrosion products occurres in the vicinity with the active anodic α-Mg grains, in the presence of chloride ions (Asmussen et al., 2016). This fact explains the persistence of these particles on the alloy surface after the removal of the corrosion layer. The presence of the oxygen in each morphological zone may indicate the surface of the Mg-matrix with its native oxides, such as MgAl₂O₄ and MgO.

On the dip-coated AZ61 surface with the hybrid sol-gel system (GPTMS-TMOS precursor + 0.3% L-Cys + 0.6% ZrO₂), “white” particles and two distinctive morphologies are observed, after the removal of corrosion layer and coating (Fig. 5b). The “white” particles present high content of Al (13.33 wt.%) and Mn (6.25 wt.%), which may correspond to sites of Al₈Mn₅, as intermetallic inclusions. The C content (19.72 wt.%) could be considered as sol-gel residues strongly encapsulated on the Mg surface. The elemental content of the zones A and B corresponds to that of AZ61 alloy. The “black area” (zone C) contains C, N, Si and S, and it was associated with the hybrid sol-gel residues.

According to reports, it is considered that the corrosion products formed on Mg-alloys surfaces consist of three layers, varying in the content of O and Mg, which concentrations increase in the internal sublayer, as a part of corroded Mg-Al-Zn alloy surface (Afrin et al., 2008; Hamu et al., 2009; Aperador Chaparro et al., 2012).

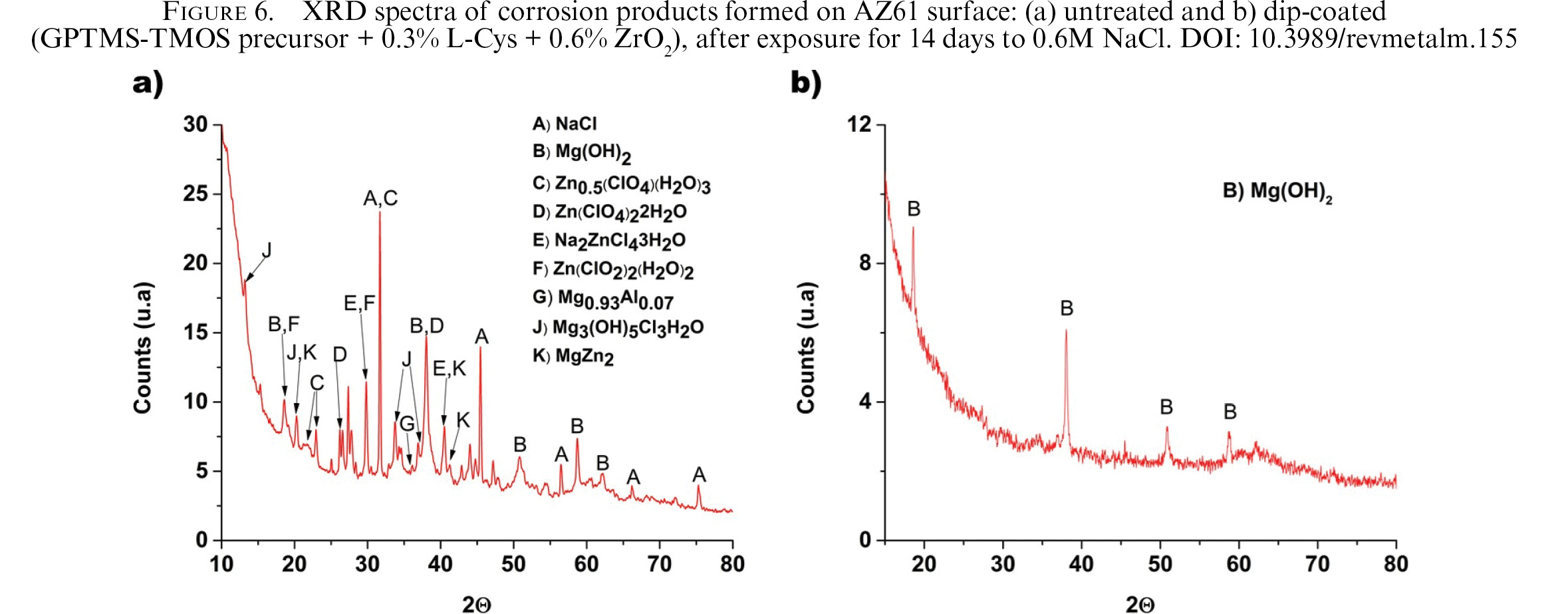

Figure 6 compares the XRD spectra of the corrosion products formed on untreated AZ61 surface with those on dip-coated, after exposure for 14 days in 0.6M NaCl. The results indicate that the main corrosion product on the hybrid surface is Mg(OH)₂ brucite, while on the untreated AZ61 surface in addition to brucite there are several compounds of Zn with chloride, in the presence of NaCl.

3.4. ZrO₂ and L-Cysteine as dopants in GPTMS-TMOS precursorTOP

The values of R_corr (R_s + R_ct) of AZ61 surfaces, dip-coated with different sol-gel hybrid systems (Table 3), exposed to 0.6M NaCl (21°C), lead to several conclusions. For example, at the initial time R_corr value of the sol-gel precursor + 0.6% ZrO₂ (75.10 kΩ cm⁻²) was twice higher than that of sol-gel precursor + 0.3% L-Cys (33.81 kΩ cm⁻²), when the effect is compared of both additives used for the selected hybrid sol-gel coating (GPTMS-TMOS + 0.3% L-cys + 0.6% ZrO₂) in this study. However, at the end of the experiment (14 days) their R_corr values were relatively similar (Table 3).

The Zeta potentials of ZrO₂ have been measured in 1mM NaCl (Liu et al., 2002) and the reported isoelectric point (pHiep-value) was 4.9 for ZrO₂. At low pH = 2, ZrO₂ forms stable colloidal particles with a positive zeta potential (+15 mV) and in the vicinity of the pHiep, the particles turn their Zeta potential to negative value, reaching -30 mV up to pH=10. Then, taking into account the initial pH = 6.8 of the 0.6 M NaCl, used as a solution for testing, ZrO₂ should have a positive Zeta potential on the surface, and indeed even later when pH increases (Eq. 2). As a consequence, the surface should attract the negative charge of the chloride ions.

It has also reported that ZrO₂ presents high adsorption capacity (Liu et al., 2008) with respect to PO₄(3-) anions in water solution (with acid pH), and the adsorption data fitted well to the Langmuir model. However, in the alkaline solution of 0.5 M NaOH, phosphate desorbability of approximately 60% was observed. The authors conclude that the adsorption tended to decrease with the increase in pH, when the desorption process starts to dominate.

On the other hand, it was reported that the molecule of L-Cysteine is stable in pH between 3 and 7, having a neutral charge (zero) (Zhang et al., 2015). As a consequence, it might be suggested that in 0.6M NaCl electrolyte, L-Cys cannot repel the entry of chloride ions in the sol-gel coating or attract them to the surface. At pH = 0 - 2.9, it is considered that the L-Cyst cationic form appears, whose stability domain is very narrow and at pH » 9 it is transformed into its mono-negative anionic form, followed by the double-negative anionic form when the pH > 12; the latter occurs because of the deprotonation of the thiol group. It can be expected that with the increase in pH to more alkaline values (Eq. 2), both anionic forms of L-Cys could be formed, but also released to the solution of NaCl. For this reason, we suggest that the incorporation of L-Cys to the sol-gel precursor does not provide a contribution to the increase of the hybrid sol-gel coating corrosion resistance.

It was further reported (Sunwoo et al., 2000; Mocanu et al., 2009; Ma et al., 2016) that L-Cys could serve as a container for metal ions released during the corrosion of AZ61 (Mg, Si, Al, Zn, Mn, Table 5), which can lead to internal stresses in the precursor layer and loss of adhesion of ZrO₂ particles. Both facts, the transformation of L-Cys in cationic forms and their release to the electrolyte, as well as the accumulation of such metal ions in the sol-gel hybrid coating during exposure in NaCl, will decrease the corrosion resistance of the sol-gel hybrid system (GPTMS-TMOS precursor + 0.3% L-Cys + 0.6% ZrO₂).

It could be concluded, after the revision of above results, reported in the literature, that there are several characteristics of ZrO₂ and L-Cyst, which should be taken into account before introducing as dopants in GPTMS-TMOS precursor, because their behavior is influenced by the pH changes of the solution at the interface of AZ61-sol-gel-electrolyte, including: Zeta potential (surface charge); chemisorption and desorption processes; internal stress in the sol-gel precursor (GPTMS-TMOS), as well as the change in its structure, after the introduction of particles of ZrO₂ and L-cys and their encapsulation. Based on the results presented in our study, we cannot recommend their use as dopants in GPTMS-TMOS precursor.

4. CONCLUSIONSTOP

ACKNOWLEDGMENTSTOP

L. Hernández gratefully thanks CONACYT for his scholarship as Ph.D. student at CINVESTAV-IPN and for the research stay at CENIM/CSIC (the National Center for metallurgical Research of Madrid, Spain). The authors acknowledge LANNBIO-CINVESTAV for permitting the use of their facilities, as well to D. Aguilar-Treviño, D. Huerta-Quintanilla, and G. Espinoza-Gurriz for their technical assistance.
