The removal of toxic metals from liquid effluents by ion exchange resins. Part XII: Mercury(II) /H⁺/Lewatit SP112

Francisco José Alguacil*, Esther Escudero

Centro Nacional de Investigaciones Metalúrgicas (CENIM, CSIC), Avda. Gregorio del Amo 8, 28040 Madrid, España

(*Corresponding author: fjalgua@cenim.csic.es)

1. INTRODUCTIONTOP

Mercury is, together with gold, silver, lead, copper and iron, one of the six elements known and used by the Mankind from the beginning, however, and unlike the others, mercury had gained a bad reputation of harmfulness and toxicity, despite the fact that under centuries it had various medical uses. Consequently, mercury is banned in the European Union and most industrialized countries, with more strict regulation from January 1, 2010. Together with the recycling of mercury, the metal and compounds are nowadays still consumed in fluorescent lamps, electronic devices, industrial chemicals, and the chloralkali and dental industries. Besides the above, the barely legal or illegal gold-mining industry appeared to be one of today´s greater mercury consumer in the world. Taking into consideration the above, mercury bans and uses, it is not quite rare that actually worldwide mercury production is around 3500 ton/year (Table 1) with near 20 countries involved in the total mercury production (USGS, 2019). Major mercury reserves seemed to be located in China, Kyrgyzstan and Peru, with Spain having appreciable estimated mercury resources.

Considering only inorganic mercury, organic mercury is another world, this element is basically found in aqueous solutions in the form of Hg²⁺ cation, or forming a number of complexes i.e. HgCl₄^2-, Hg(CN)₄^2-, Hg(Tu)₂²⁺, etc. Thus, and based in the above, the elimination of Hg(II) from aqueous streams is a topic of interest from researchers, which explored new systems to achieve this goal, This interest is reflected in the number of articles published in the 2106–2019 period years regarding the removal of mercury(II) using adsorbents/ion exchangers; the number of articles surpassed well the articles devoted to the use of liquid-liquid extraction or liquid membranes technologies for such removal (Table 2).

Following on the series (Alguacil et al., 2002; Alguacil, 2002; Alguacil, 2003; Alguacil, 2017a; Alguacil, 2017b; Alguacil, 2018a; Alguacil, 2018b; Alguacil and Escudero, 2018; Alguacil, 2019a; Alguacil, 2019b; Alguacil, 2019c), in this work the removal of Hg(II) from acidic aqueous solutions by using the cationic exchange resin Lewatit SP112 is investigated. Several variables affecting mercury(II) uptake onto the resin are studied, as well as the performance of various resins and multiwalled carbon nanotubes on Hg(II) uptake. The elution of mercury(II) from metal-loaded Lewatit SP112 resin by different eluants is also tested, and also the precipitation of zero valent mercury as end product of the process.

2. EXPERIMENTALTOP

Lewatit SP112 (Fluka) is a macroporous strongly acidic resin, which presented the form of spheres with a high degree of crosslinked polystyrene matrix containing sulfonic groups; the bead size is in the 0.4–1.25 mm range. Other chemicals, including the various cations exchange resins used in the experimental work are of AR grade. The multiwalled carbon nanotubes (MWCNTs) have the characteristics given elsewhere (Alguacil et al., 2016).

The experimental investigation, in batch form both in loading and elution steps, was carried out in a glass reactor vessel (250 mL), containing the Hg(II) aqueous solution and the corresponding resins/adsorbents dosage. The system was stirred via a four blades glass impeller at 500 min⁻¹ and 20 °C, except when these variables were investigated.

Mercury in the aqueous solutions was analysed by Inductively Coupled Plasma-Optical Emission Spectroscopy (ICP-OES), whereas mercury loaded onto the resins/adsorbent was calculated by the mass balance.

3. RESULTS AND DISCUSSIONTOP

As it was mentioned in the Introduction section, this investigation was based in the removal of Hg²⁺ species from aqueous solutions, and being Lewatit SP112 a cationic exchange resin, metal uptake onto the resin can be represented by the next equilibrium:

where [- represented the unreactive part of the resin, and r and aq are the species present in the resin and in the aqueous solution, respectively.

3.1. Mercury(II) uptake onto Lewatit SP112 resinTOP

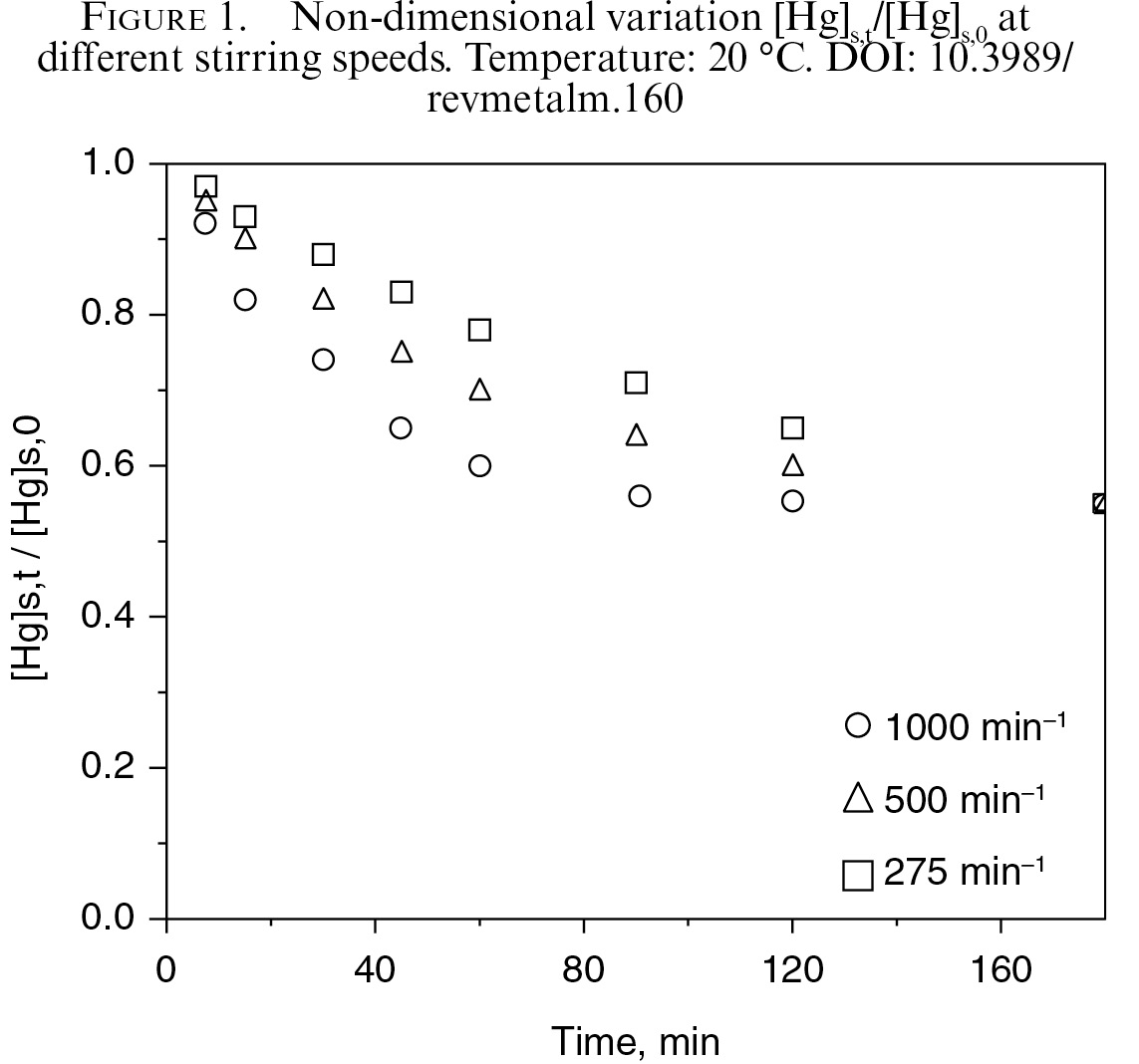

Along the works of this series, it was mentioned the importance that the stirring speed, applied to a system, may have on the corresponding metal uptake, and that this was an experimental variable to consider in every exchange-adsorption system. In the present case, experiments to investigate the influence of this variable on metal uptake had been carried out using aqueous solutions of 0.01 g·L⁻¹ Hg(II) at pH 4, and resin concentrations of 0.05 g·L⁻¹. Results derived from these sets of experiments were shown in Fig. 1, and it can be deducted from these results that maximum mercury removal from the solution was 45% (90 mg·g⁻¹ uptake) for the range of stirring speeds investigated. Thus, this variable had not any appreciable influence on metal loading, but it had an influence on the time to achieve equilibrium; accordingly, as the stirring speed was increased the variation of the [Hg]_s,t/[Hg]_s,0 relationship had a more pronounced slope. The experimental results were fitted to various kinetic models, and the results indicated that at 275 min⁻¹, the second order kinetic model (Ho, 2006) best fitted the data:

with r²= 0.9982 and k= 4.6x10⁻⁴ L/mg min, whereas in the 500–1000 min⁻¹ the experimental data were well explained by the pseudo-second order kinetic model (Fu et al., 2019):

with r²=0.9938 and 0.9871, and k values of 8.5×10⁻⁴ and 1.6×10⁻³ g/mg min) for the stirring speeds of 500 and 1000 min⁻¹, respectively. In Eqs. (2) and (3), [Hg]_s,t, [Hg]_r,t, [Hg]_s,0 and [Hg]_r,e were the mercury concentrations in the solution and in the resin at an elapsed time t, and the metal concentrations in the initial solution and in the resin at equilibrium, respectively. In the present experimental conditions, in the 275–1000 min⁻¹ range, the system reached a minimum in the thickness of the solution boundary layer and the metal uptake reached a maximum.

Temperature was another variable which had been investigated in the 20–60 °C range, and the results were given in Table 3, being D defined as:

where [Hg]_r,e had the same significance that in Eq. (3), and [Hg]_s,e is the mercury concentration in the solution at the equilibrium. From these values it can be seen that the metal uptake onto the resin decreased (lower D value) with the increase of the temperature, with ΔH° and ΔS° values of −15 kJ·mol⁻¹ and −23 J·mol⁻¹K, respectively, derived from the plot of log D versus 1000/T. The value of ΔG° for the system was estimated as -8 kJ·mol⁻¹. Thus, the metal uptake was exothermic and spontaneous, whereas the negative entropy values indicated an exchange process with decreased its randomness. The experimental data, derived from studying the influence of the temperature on mercury loading onto the resin, were used to estimate the model which explained the exchange process; in the 20–60 °C temperature range, the data fitted well with the moving boundary model (López Díaz-Pavon et al., 2014):

where F is the factorial approach to equilibrium, defined as:

with r² values of 0.9841, 0.9881 and 0.9966 and k values of 5.3×10⁻³, 1.4×10⁻² and 1.3×10⁻² min⁻¹, for 20, 40 and 60 °C, respectively.

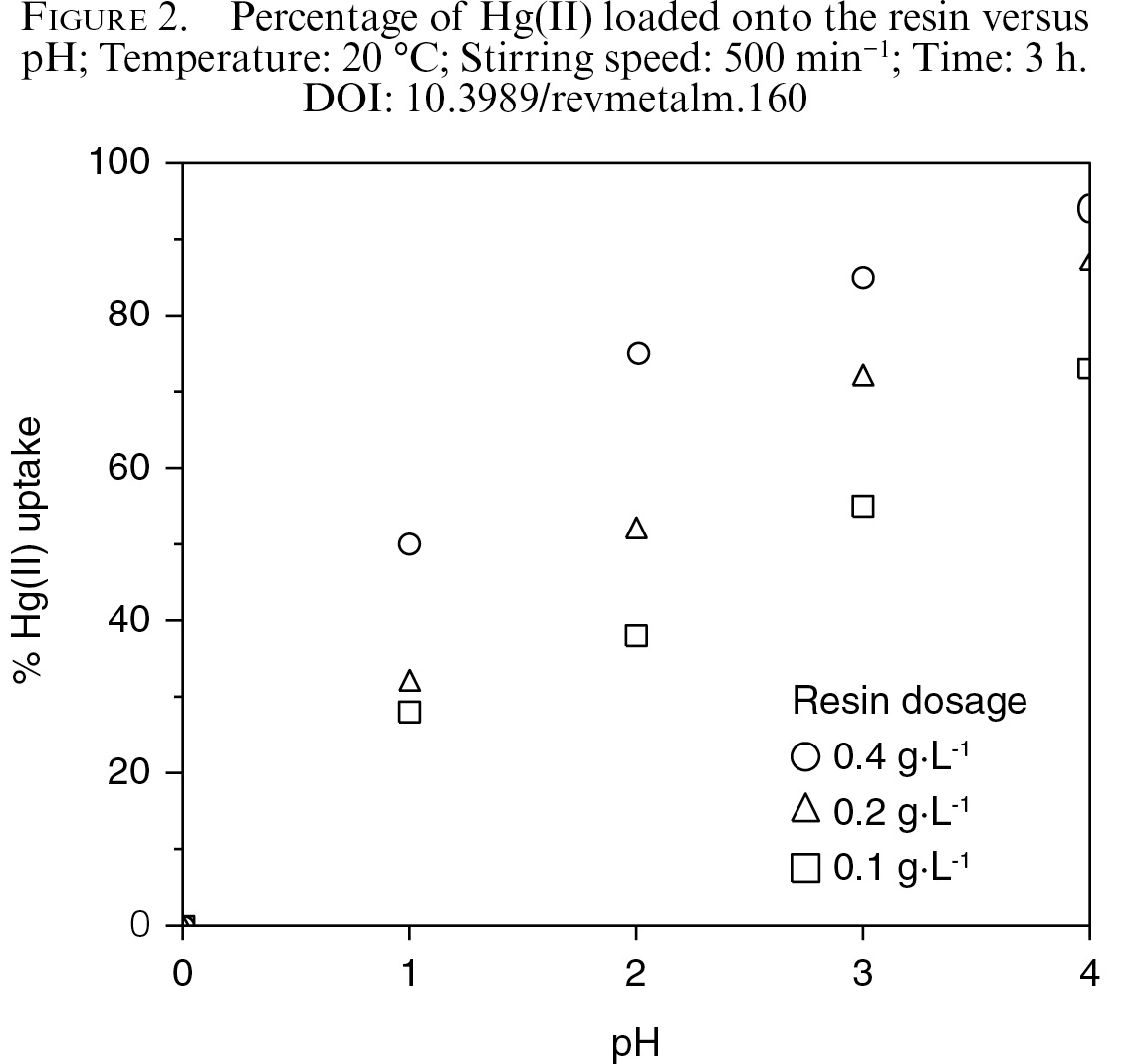

The variation of the aqueous phase pH value on Hg²⁺ using resin dosages of 0.1–0.4 g·L⁻¹, and aqueous solutions containing 0.01 g·L⁻¹mercury(II) at different pH values (0 to 4). The results from this investigation were shown in Fig. 2, plotting the percentage of mercury(II) loaded onto the resin versus pH. These results showed that the percentage value decreased as the value of the pH decreased; this behaviour was repeated for every resin dosage used in the experimentation, though this effect was less pronounced as the resin dosage increased.

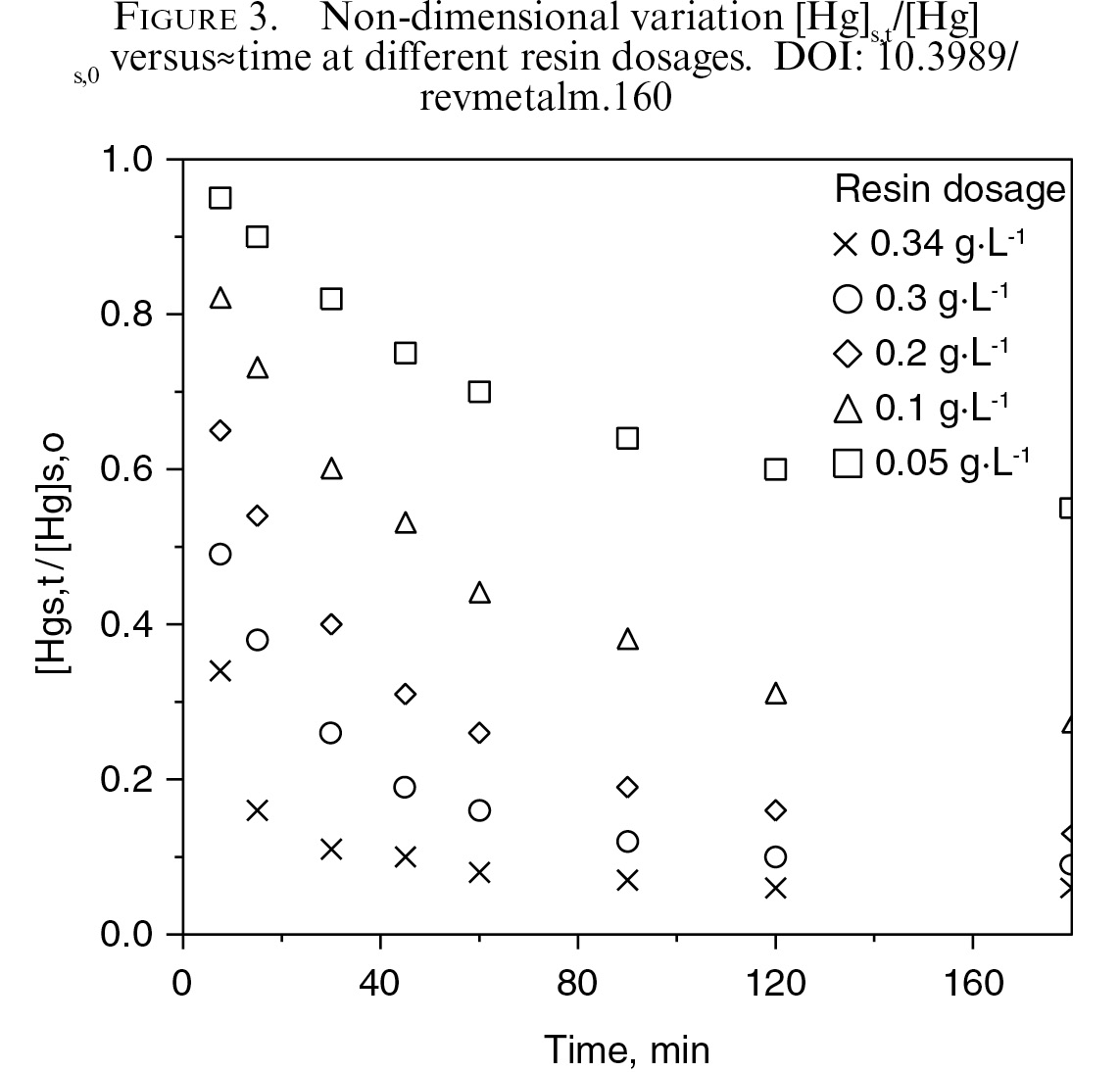

Various resin dosages (0.05–0.4 g·L⁻¹) were used to investigate their influence on Hg(II) load onto the resin. In these series of experiments, the aqueous solution was of 0.01 g·L⁻¹Hg²⁺ at pH 4, whereas the temperature was of 20 °C and the stirring speed of 500 min⁻¹. The results were plotted in Fig. 3, where the y-axe represented the non-dimensional [Hg]_s,t/[Hg]_s,0 relationship, and the x-axe the time. From these plots it is observed that the increase of the resin dosage produced an increase of the mercury left in the solution, at every time. From these experimental results, in Table 4 the equilibrium results, from which the fit of the data were done on Langmuir or Freundlich isotherms, was given. The data from this Table best fitted (r²= 0.9932) to the Langmuir type-2 isotherm (Haghdoost et al., 2017):

with k= 0.3 L·mg⁻¹ and [Hg]_m= 152 mg·g⁻¹ being this last value the maximum metal uptake onto the resin. The dimensionless separation factor:

was estimated as 0.25, thus, the exchange process was favourable, since R value wass greater than zero and lower than one.

The removal of mercury(II), from the aqueous solution of pH 4, using other potential agents for this task also investigated. The results derived from these experiments were summarized in Table 5. It can be seen that, under the present experimental conditions, Lewatit SP112 results compared well with the obtained with the others exchangers/adsorbent used in the present work.

3.2. Mercury(II) elutionTOP

The elution of Hg(II) loaded onto the resin was evaluated using two types of solutions, i) acid solution, ii)Hg(II)-complexant bearing solutions. Results from this investigation were summarized in Table 6. In the case of acid (HNO₃) solution, the variation of the solution volume/resin weight relationship had little influence on mercury elution, averaging near 80%, but obviously had an influence on the metal concentration resulting in the eluate: the lower solution volume/resin weight relationship used the higher Hg(II) concentration in the eluate. In the case of the solutions containing Hg-complexant agents (thiocianate, ethylendiaminotetraacetic acid and thiourea), the results are more or less of the same magnitude order, a little better with the NaSCN solution, but, in the present conditions, were lower values than in the case of the acid solution. With this acid solution, the elution step responded to the next equilibrium:

where the subscript aq, represented the elution phase. In order to recycle back the resin to the Na⁺ form, it is necessary a further wash of it with NaOH solution.

3.3. Post-treatment of the Hg-bearing eluateTOP

After being mercury(II) recovered in the eluate, it seemed necessary to treat the solution in order to end the process of mercury removal from a given liquid effluent. One option, was to recover the metal in one of its more stable form, such as zero valent mercury, and this was done by putting into contact the eluate containing 0.03 g·L⁻¹ Hg(II) in 0.1 M HNO₃ medium with solid sodium borohydride. This salt was a strong reducing agent because its hydrolysis in acidic medium released hydrogen:

Hydrogen reacted with mercury(II), to reduce it to the zero valent oxidation state:

and the released Hg⁰ can be safely dumped. Figure 4 showed zero valent mercury nanodrops (bright points) obtained from this precipitation. It can observed how bigger drops were formed by coalescence of smaller ones.

4. CONCLUSIONSTOP

The use of the cationic exchange resin Lewatit SP112 allows to the removal of Hg(II) from liquid wastes. The agitation speed has not influence on the maximum metal loading (90 mg·g⁻¹ under the experimental conditions), but has an influence on the time to reach this maximum. Moreover, the kinetic model representing experimental data is the second order in the case of using 275 min⁻¹ as agitation speed, and the pseudo-second order for agitation speeds of 500–1000 min⁻¹. Mercury(II) uptake onto the resin is exothermic and spontaneous. In the 20–60 °C temperatures range, the data fit well with the moving boundary model. Mercury(II) load onto the resin decreases with the decrease of the pH value from 4 to zero, however, as the resin dosage increases, from 0.1 to 0.4 g·L⁻¹, this negative influence is less evident. At pH zero, no mercury(II) uptake is found for every resin dosage tested. At pH 4, metal loading experiments show that the experimental data fit well (r²= 0.9932) with the Langmuir type-2 isotherm, and the maximum mercury(II) uptake onto the resin is estimated in the 15 mg·g⁻¹ order in a favourable exchange process (R= 0.25).

Mercury(II) elution is best performed using acidic (nitric acid) medium, and from the eluate, zero valent mercury yields as final product.

ACKNOWLEDGEMENTTOP

To the CSIC (Spain) for support. To Mrs. E. Moroño (CENIM) for assistant in the analytical work, and to Prof. Dr. P. Adeva (CENIM) to obtain the images of Fig. 4.
