Elaboration of synthetic slags containing marble waste and aluminum oxide used in steel desulfurization process

Felipe F. Grillo^a,*, Jorge L. Coleti^b, Eduardo Junca^c, Victor B. Telles^c, José R. de Oliveira^a, Tiago E.A. Frizon^d, Denise C.R. Espinosa^b

^aFederal Institute of Espírito Santo, 1729 Vitoria Avenue, Vitória, ES, 29040-780, Brazil

^bPolytechnic School of the University of São Paulo, 1080 Prof. Luciano Gualberto Avenue, São Paulo, SP, 05508-010, Brazil

^cUniversity of the Extreme South of Santa Catarina, 1105 Universitária Avenue, Criciúma, SC, 88806-000, Brazil

^dFederal University of Santa Catarina, University campus Reitor João David Ferreira Lima Trindade, Florianópolis, SC, 88040-900, Brazil

*(Corresponding author: felipefarding@gmail.com)

1. INTRODUCTIONTOP

Due to the increasing demand for steels containing lower sulfur content (up to 10 ppm), the steelmakers companies have been adopting a better control of the production process, as well as an optimization of chemical adjustment in synthetic slags in order to obtain steels with better mechanical behaviors (Holappa, 1982; Taguchi et al., 2003; Nita et al., 2010; Xu et al., 2016).

The desulfurization process in ladle furnace and Kanbara reactor are used widely (Emi, 2015; Alba et al., 2015; Tong et al., 2016; Ma et al., 2017). The main inputs used in those processes are the calcium oxide (CaO), calcium carbide (CaC₂) and magnesium (Mg), where they can be used singly or added in mixtures containing calcium fluoride (fluorspar – CaF₂) and sodium oxide (Na₂O).

The desulfurization reaction Eq. (1) occurs due to the preference in the formation of sulfides instead oxide. Besides, the mechanism of the desulfurization reaction is based on the mass transport of sulfur from the liquid metal to the calcium oxide particles in the slag. Thus, the reaction can be improved by increasing the metal/slag agitation system or using basic slag with low oxygen potential (Rosenqvist, 1988).

In addition, the slags used in the desulfurization process were composed by liquid and solid fractions, where each fraction variation controls the slag viscosity. Furthermore, slags with concentration of CaO above 60% trends to contain solid phase, which it may limit the desulfurization process. An alternative is the use of fluorspar, since this material increases the proportion of liquid phase in the slags, which it is necessary to improve the desulfurization process. However, the use of fluorspar takes a serious environmental problem. The steelmaking companies have been looked for new materials to replace fluorspar, such as CaO-Al₂O₃ slag system (Shimizu et al., 2001; Pretorius, 2002; Coleti et al., 2015). Besides, the companies have also financed studies to use wastes instead the inputs mentioned previously. In this way, the marble waste may be an alternative to the desulfurization process, since its composition is mainly CaO, MgO and SiO₂. Some works have mentioned this waste to produce synthetic slag for desulfurization process as a practicable route (Grillo et al., 2017; Coleti et al., 2017).

The computational thermodynamic is an important tool in order to investigate the behavior of slags in the desulfurization process. This tool indicates the percent of liquid and solid phases in a certain temperature and condition of desulfurization, which it allows to determine the content of CaO that participate of the desulfurization process. Thus, the aim of this paper is to produce a synthetic slag in order to replace both fluorspar and lime by aluminum oxide and marble waste in desulfurization process of steel. Additionally, the results obtained from computational thermodynamic are compared with the experimental tests.

2. MATERIALS AND METHODSTOP

2.1. Slags formulationTOP

The chemical analyzes of the raw materials (Table 1) were carried out in order to formulate the compositions of synthetic slags. This characterization step was performed by X-ray fluorescence.

The synthetic slags were elaborated in order to investigate the use of marble waste instead lime in desulfurization process. In addition, it was also determinate the relationship between the fraction of liquid phase with the percentage of CaF₂, Al₂O₃ and CaO. Then, the influence of viscosity on the desulfurization process was also investigated. Table 2 shows the chemical composition for each synthetic slag obtained via mass balance. The content of liquid phase was simulated by Thermo-Calc software at 1600 °C.

The synthetic slags CA1-CA6 (containing lime and aluminum oxide) were performed in order to investigate the influence of liquid phase on the desulfurization process. The synthetic slags RA1 to RA4 were formulated to investigate the use of marble waste instead of lime. In these slags, the content of CaO was kept equal to the slags CA3-CA6, respectively. The Al₂O₃ was added in the slags composition in order to react with CaO (from lime or marble waste) to form the calcium aluminate phase. It was also investigated the use of calcined marble waste on the desulfurization process. In this step, the marble waste was calcined at 1000 °C before add it in the synthetic slag. The content of CaO was the same of that used in the synthetic slag RA1. This synthetic slag was called CRA.

2.2. ExperimentalTOP

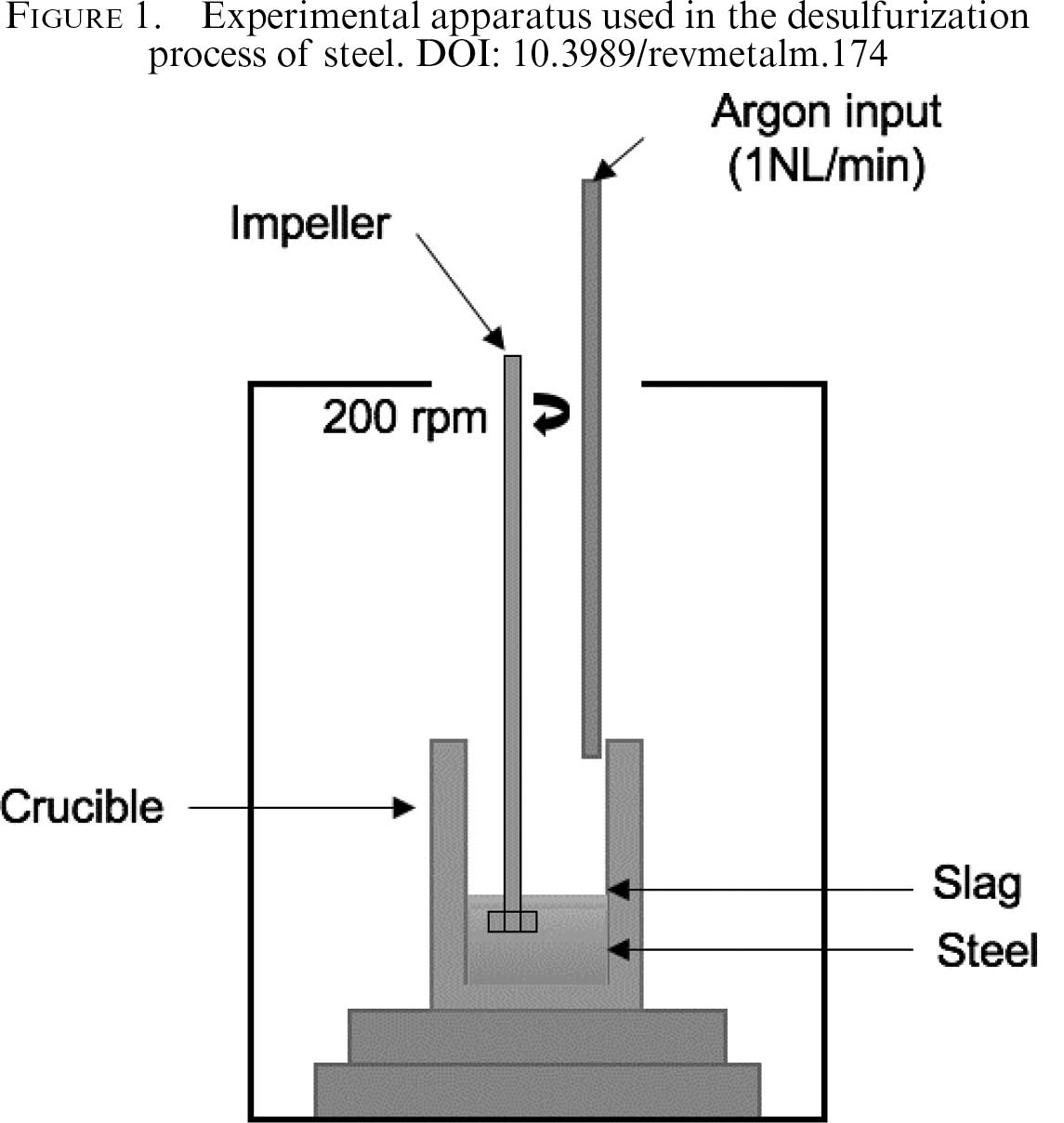

In each test of desulfurization was used 1000 g of SAE 1020 steel containing 80 ppm of sulfur. The sample of steel was put into a MgO-C crucible and sent it to a vertical furnace. Then, it was purged argon into the furnace to avoid the steel oxidation, once the furnace was heated up to 1600 °C. When the steel was melted, the synthetic slag was added on the bath. At the same time, the impeller was turned on at 200 rpm for the bath homogenization. Figure 1 show the experimental apparatus used in the desulfurization process.

Aliquots of liquid steel were obtained from the bath at 0, 5, 10, 15, 20 and 30 min to determine the sulfur content via LECO CS240 infrared spectrometer.

In addition, Thermo-calc software (database SLAG3) was used to determine the fraction of liquid and solid phases, the solid phases formed, content of equilibrium sulfur and CaO activity for all synthetic slags at 1600 °C.

2.3. Desulfurization yieldTOP

The desulfurization yield was calculated via Eq. (3):

where η (%) is the desulfurization yield; [%Si] is the initial sulfur content and [%Sf] is the final sulfur content.

3. RESULTS AND DISCUSSIONTOP

3.1. Influence of marble waste TOP

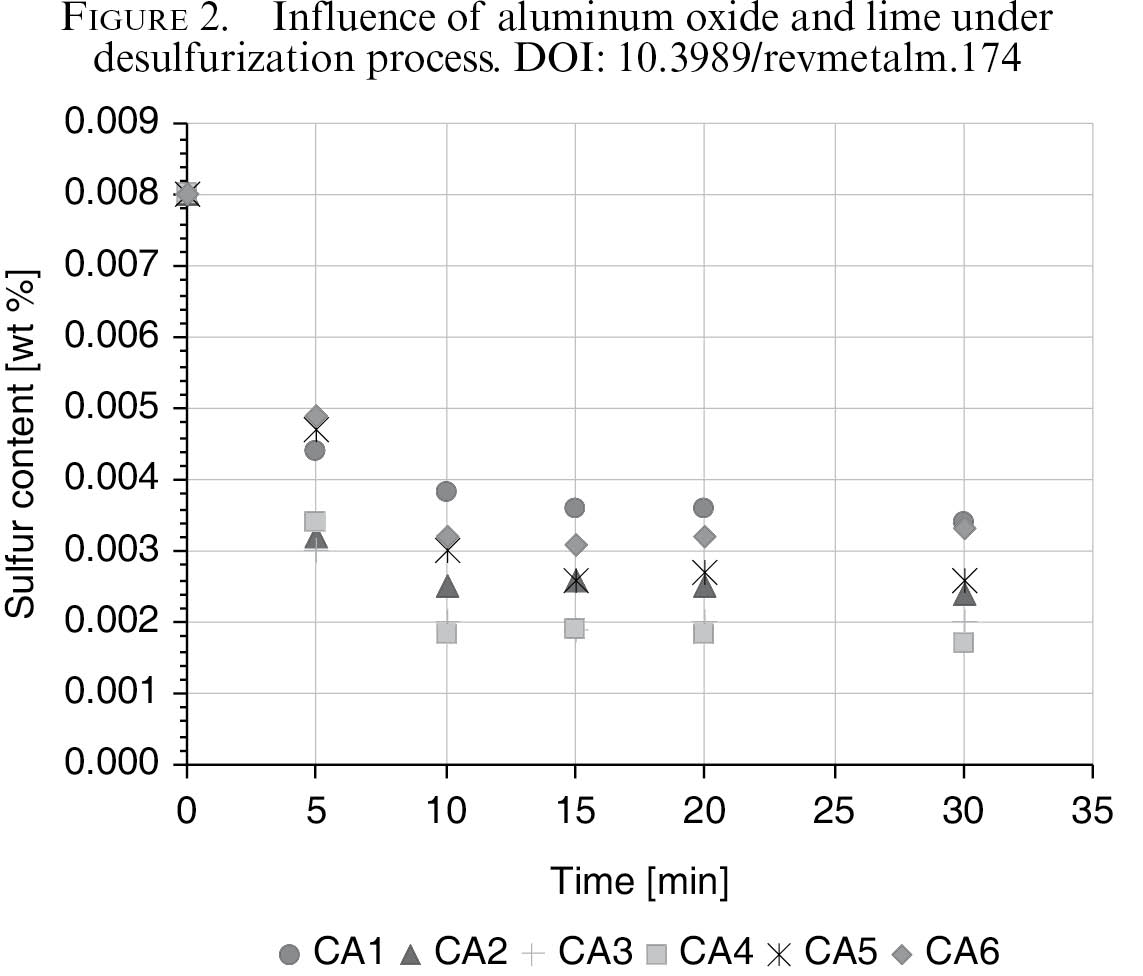

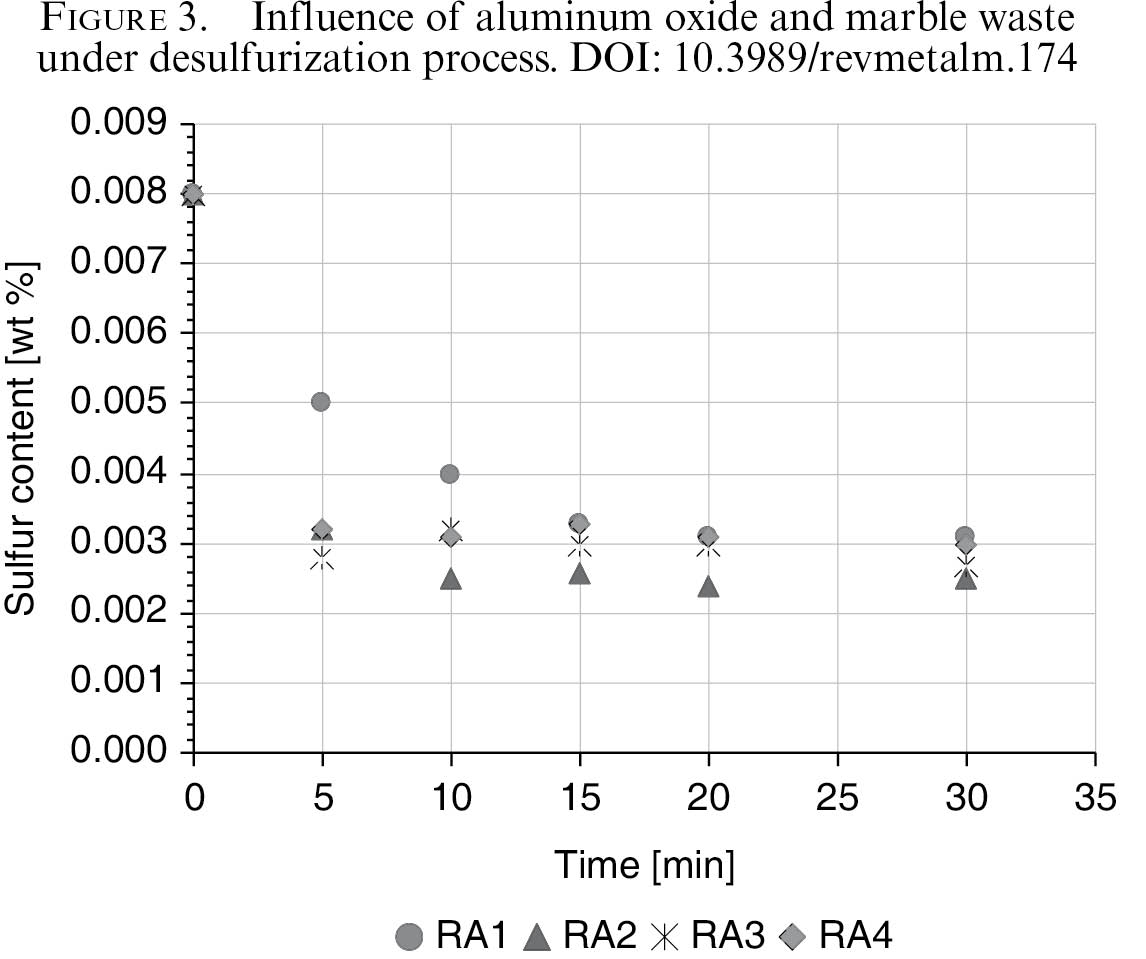

Figure 2 shows the desulfurization tests with slags containing Al₂O₃ and conventional lime. The desulfurization for slags containing Al₂O₃ and marble waste is shown in Fig. 3.

In all tests, the desulfurization reaction occurred in 10 min. After this time, the sulfur content kept constant. Such results suggest that the synthetic slags can be used in steelmaking companies with that perform the desulfurization process between basic oxygen furnace and transfer ladle, since the running time is around 10 min.

The lesser sulfur content (0.0017 wt%) was obtained for the synthetic slag CA4 (containing conventional lime), while the synthetic slag RA2 (containing marble waste) reached a sulfur content of 0.0024 wt%.

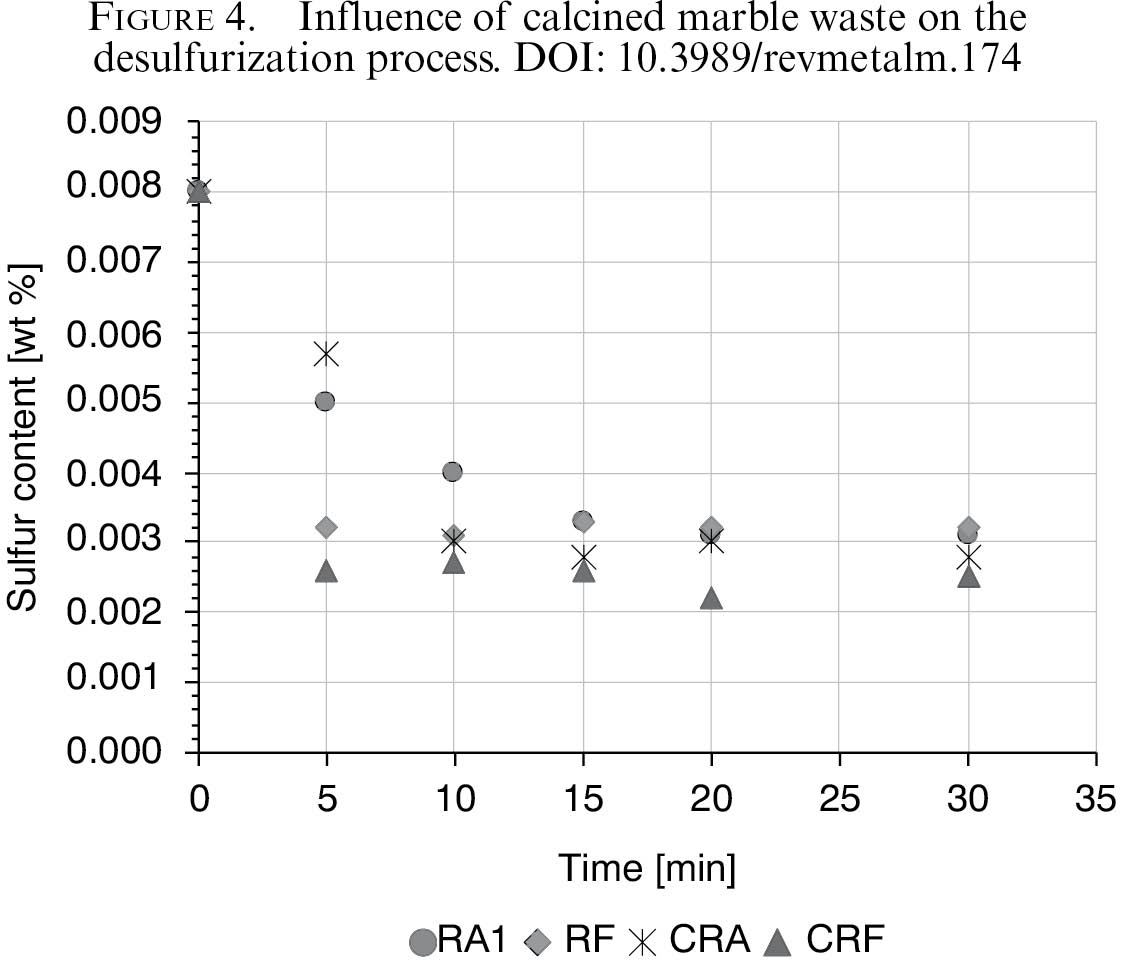

Two effects can explain this behavior. First, the presence of MgO from marble waste increased the melting temperature of the slags (Wilson and Mclean, 1980). Thus, the formation of liquid phase was lesser for synthetic slags produced with marble waste. Second effect is due the decomposition of carbonates. Figure 4 shows the results obtained when calcined marble waste was used as an input in synthetic slag.

The synthetic slags with marble waste (RA1 and RF) showed a desulfurization yield of 61.1 wt% and 60.0 wt%. The synthetic slags CRF (containing fluorspar and calcined marble waste) and CRA (containing calcined marble waste) showed a desulfurization yield of 68.2 and 65.0 wt%, respectively. It is clear that the use of calcined marble waste increased the desulfurization process. This behavior is due the carbonates decomposition, as it can be demonstrated in equations 4 and 6 (Caceres and Attiogbe, 1997). These equations indicate that desulfurization is an endothermic reaction. Therefore, a decrease of the bath temperature trend to harm the desulfurization yield.

3.2. Influence of liquid phase TOP

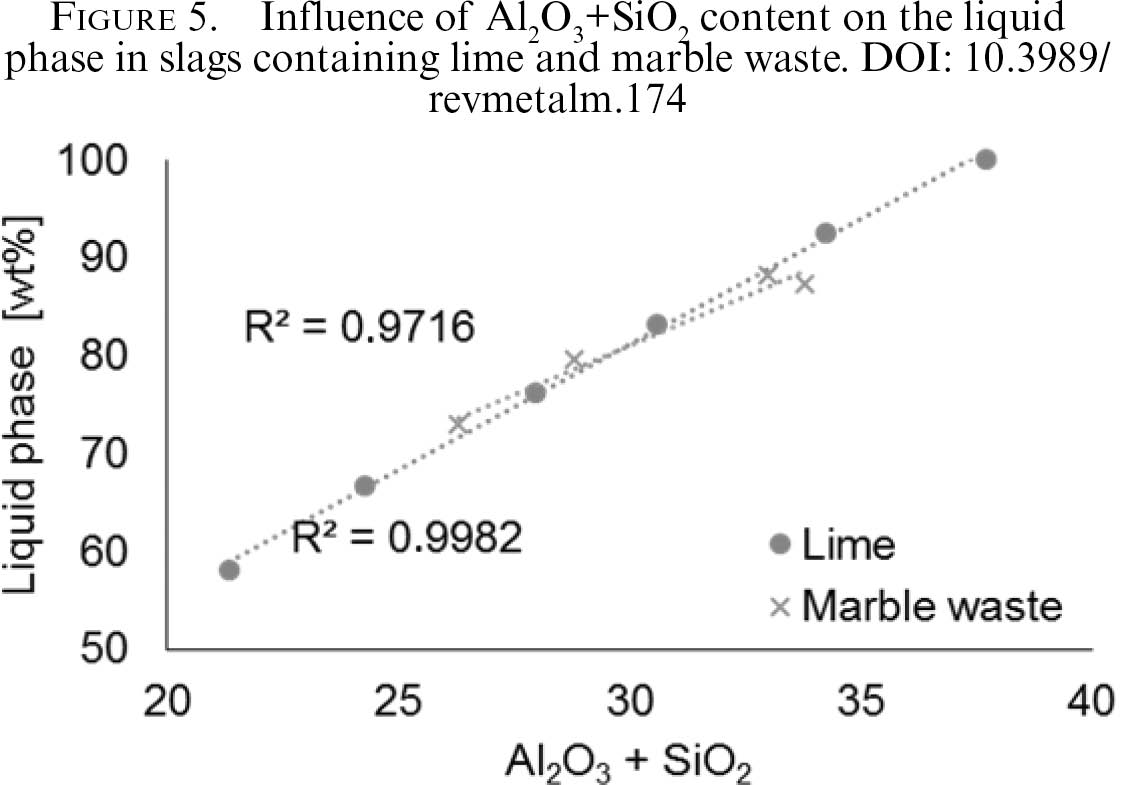

Table 3 shows the relationship between the desulfurization yield and liquid phase. Figure 5 shows that the replacement of lime for marble waste in the synthetic slags did not presented a significant change in the percentage of liquid phase.

The use of marble waste increased the amount of liquid phase, since the marble waste contain SiO₂ in its composition, which it supports the formation of liquid phase at 1600 °C (Wilson and Mclean, 1980). In addition, synthetic slags with higher percentage of SiO₂ and Al₂O₃ (consequently a lesser percentage of CaO) also suggested a lesser melting temperature, which implies in higher percent of liquid phase. Such facts have effect on the desulfurization process, as it can be seen in Fig. 6.

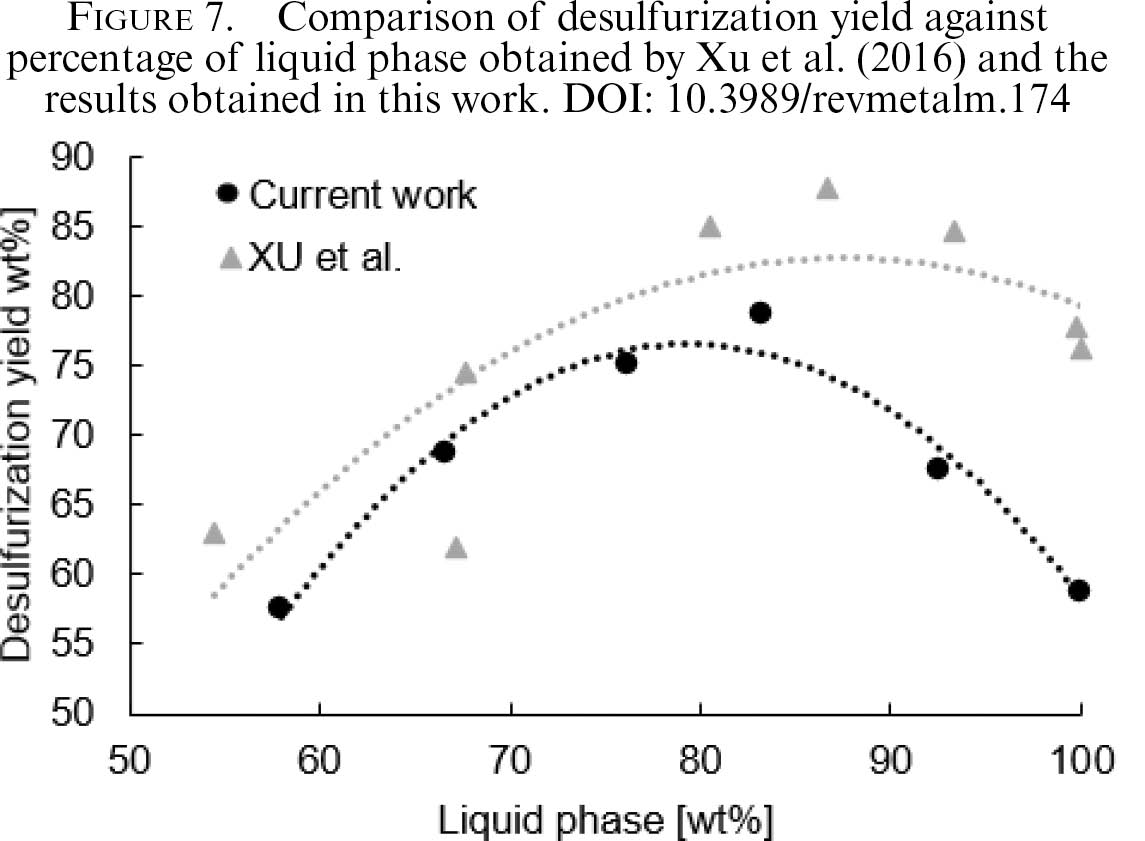

It was noted an increase on the desulfurization yield up to 85.0wt% of liquid phase (in the synthetic slags with lime). In synthetic slags containing marble waste, it was observed an increase of desulfurization yield up to 82.0 wt% of liquid phase. Similar result was found by Xu et al. (2016) using a vacuum-induction furnace (Fig. 7). The authors obtained the maximum desulfurization yield with a slag containing around 87.0 wt% of liquid phase. Thus, regardless of the desulfurization process and raw materials, a slag with 100% of liquid phase is not the ideal for desulfurization process of steel.

3.3. Influence of liquid phase TOP

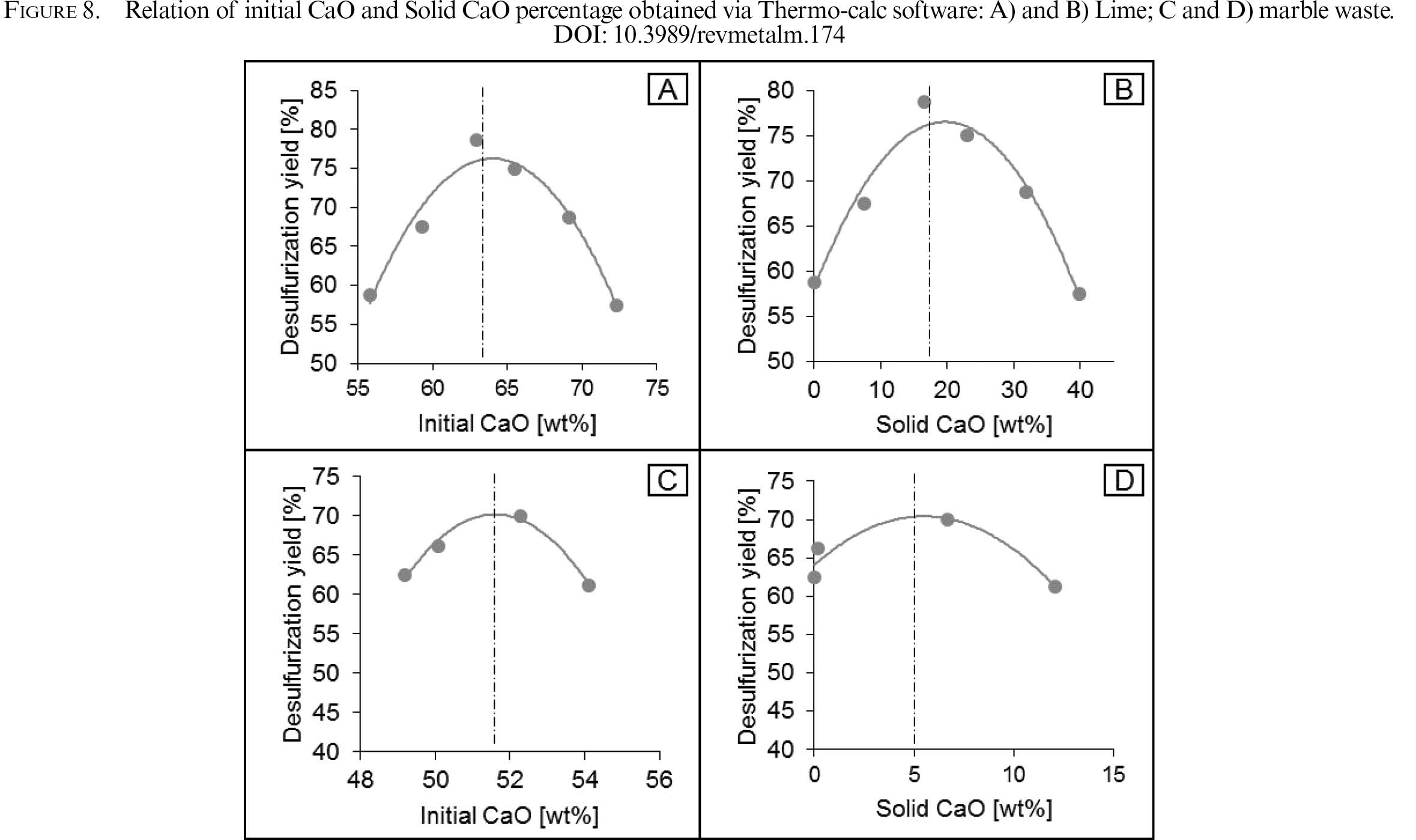

Figure 8 shows the influence of initial content of CaO in the slag composition and the percentage of solid CaO on desulfurization yield.

In slags containing lime, the content of initial CaO up to 64 wt% and a percentage of solid CaO was up to 17.0 wt% increased the desulfurization yield. In slags containing marble waste, the content of initial CaO was 51.0 wt%, while the solid CaO was up to 5.0 wt%. Therefore, there is a saturation limit of CaO solid for processes controlled by top slag and liquid phase mechanisms. The same affirmation can’t be made for processes controlled by top slag mechanism. In this case, increasing the liquid phase also increases the desulfurization yield (Pretorius, 2002). Thus, the presence of solid phase as well as the activity of solid CaO equal 1 are necessary to increase the desulfurization yield in process controlled by top slag and solid phase mechanisms.

According to Xu et al. (2016), the slags containing solid CaO presented higher desulfurization yield. They also concluded that the capacity for remove sulfur from the steel is more dependent of liquid CaO than solid CaO. Besides, the authors mention that CaO-CaF₂ slags system have a better behavior than CaO-Al₂O₃-CaF₂-SiO₂ slags system in the desulfurization.

3.4. Influence of CaF₂ and Al₂O₃TOP

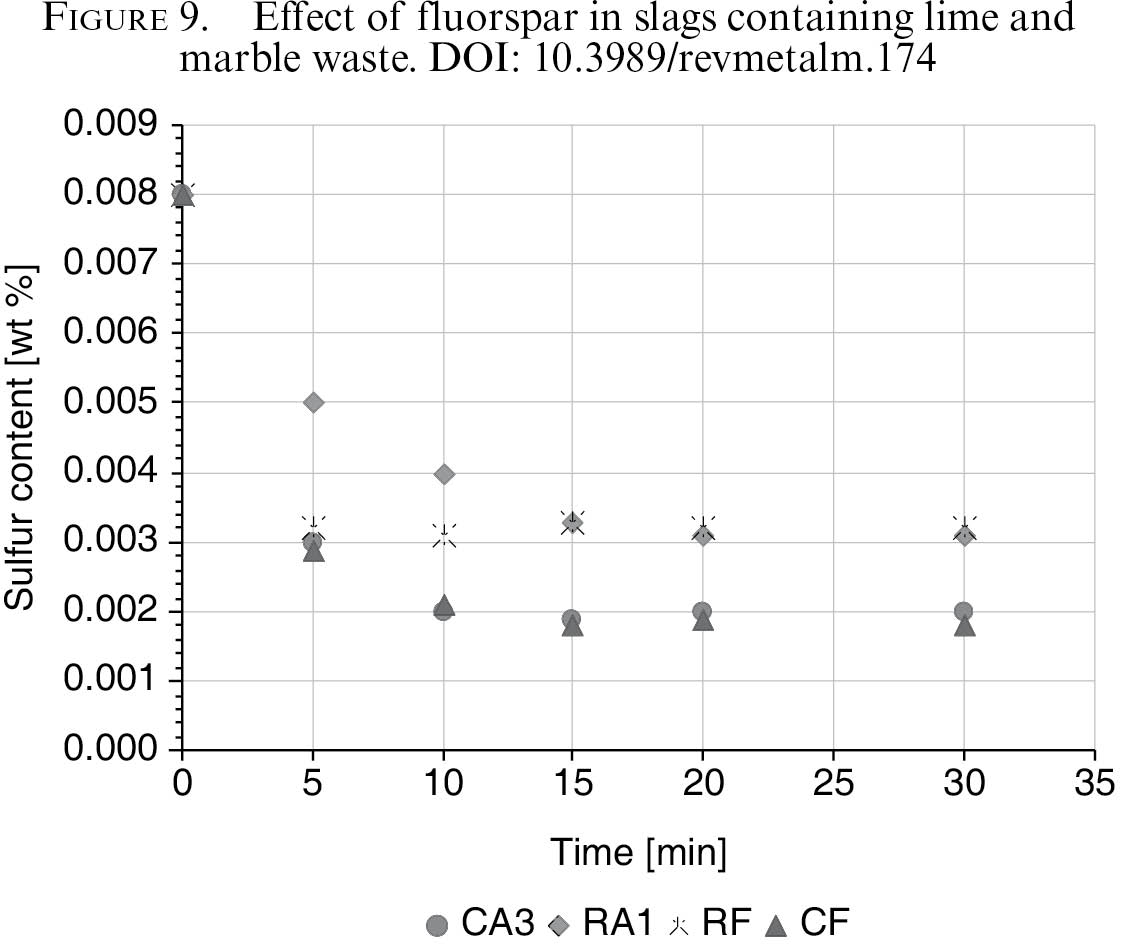

Figure 9 shows the results for synthetic slags elaborated with marble waste (RA1 and RF) and lime (CA3 and CF) containing CaF₂ and Al₂O₃.

In synthetic slags containing lime were obtained a content of sulfur around 0.002 wt%, while for synthetic slags with marble waste was reached a content of sulfur around 0.003 wt%, indicating that synthetic slags containing lime can reached lesser content of sulfur.

For the same raw material (lime or marble waste), the replacement of fluorspar by Al₂O₃ didn’t change the final content of sulfur. The fluorspar is added to decreases the melting temperature of slags, and consequently, it decreases the percentage of solid Ca. Thus, the presence of fluorspar decreased the percentage of CaO solid (as it was shown in Table 3), which it harmed the desulfurization process.

3.5. Influence of viscosityTOP

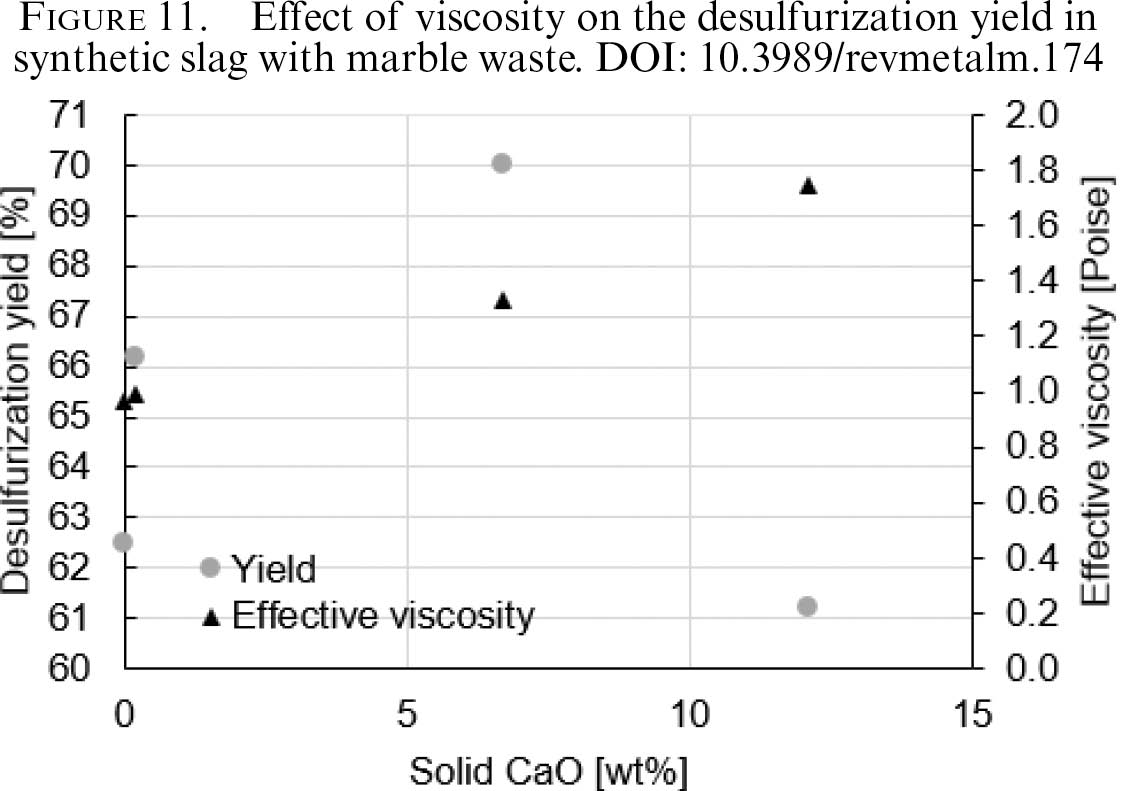

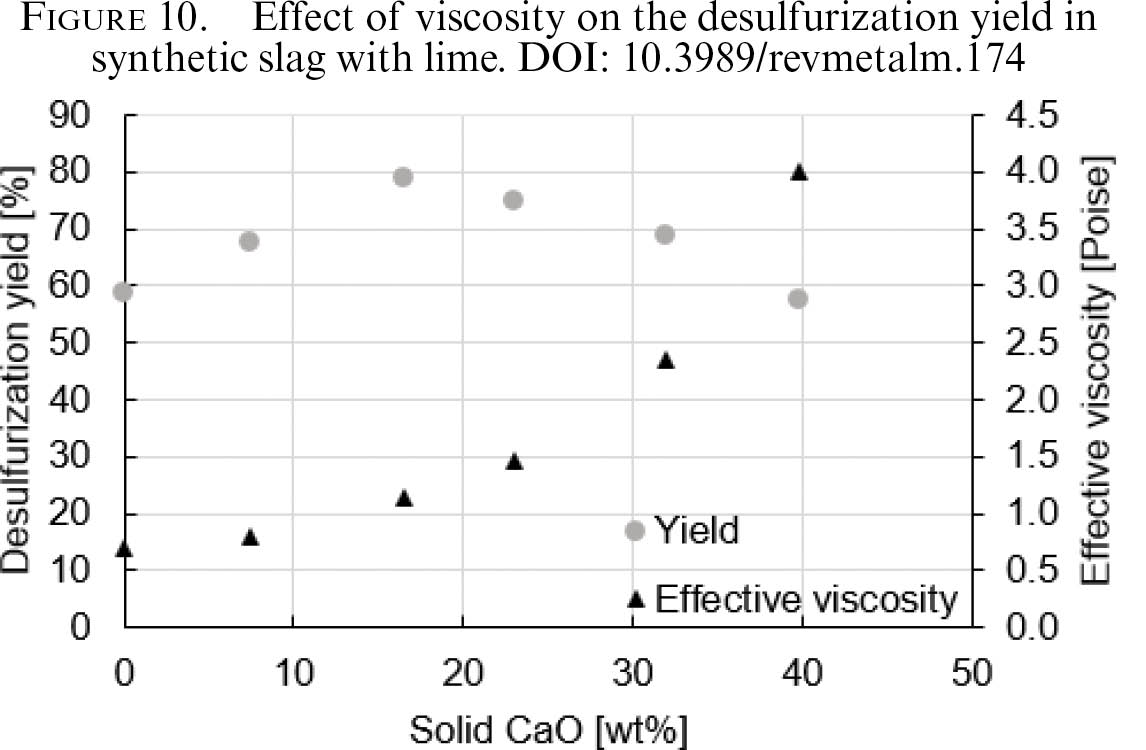

Figures 10 and 11 show the effect of viscosity on the desulfurization yield in synthetic slags with lime and marble waste, respectively. The maximum desulfurization yield for slags containing lime was reached with 16.6 wt% of solid CaO and an effective viscosity of 1.1 poise. The synthetic slags containing marble waste reached the maximum desulfurization yield of 6.7 wt% with 1.3 poise of effective viscosity. The presence of solid phase increased the slag viscosity, which can impaired the interaction between steel and slag (Putan et al., 2013). However, the presence of solid CaO up to a certain limit is beneficial to the desulfurization process, as it was discussed previously.

4. CONCLUSIONSTOP

The results indicated that the use of marble waste in synthetic slags in the desulfurization process of steel is an alternative when the final content of sulfur is around 0.003 wt%. For this application, some parameters should be controlled to favors the reaction. The synthetic slag contained 82.0 wt% of liquid phase with 51.0 wt% of CaO. Besides, the synthetic slag contained 5 wt% of solid CaO. An alternative to increase the desulfurization yield is to use calcined marble waste. The study showed that this practice decreased the sulfur content to 0.0025 wt%. In addition, the replacement of fluorspar by Al₂O₃ indicated to be an alternative for the desulfurization process, since the desulfurization tests using fluorspar and Al₂O₃ reached the same values of final sulfur.
